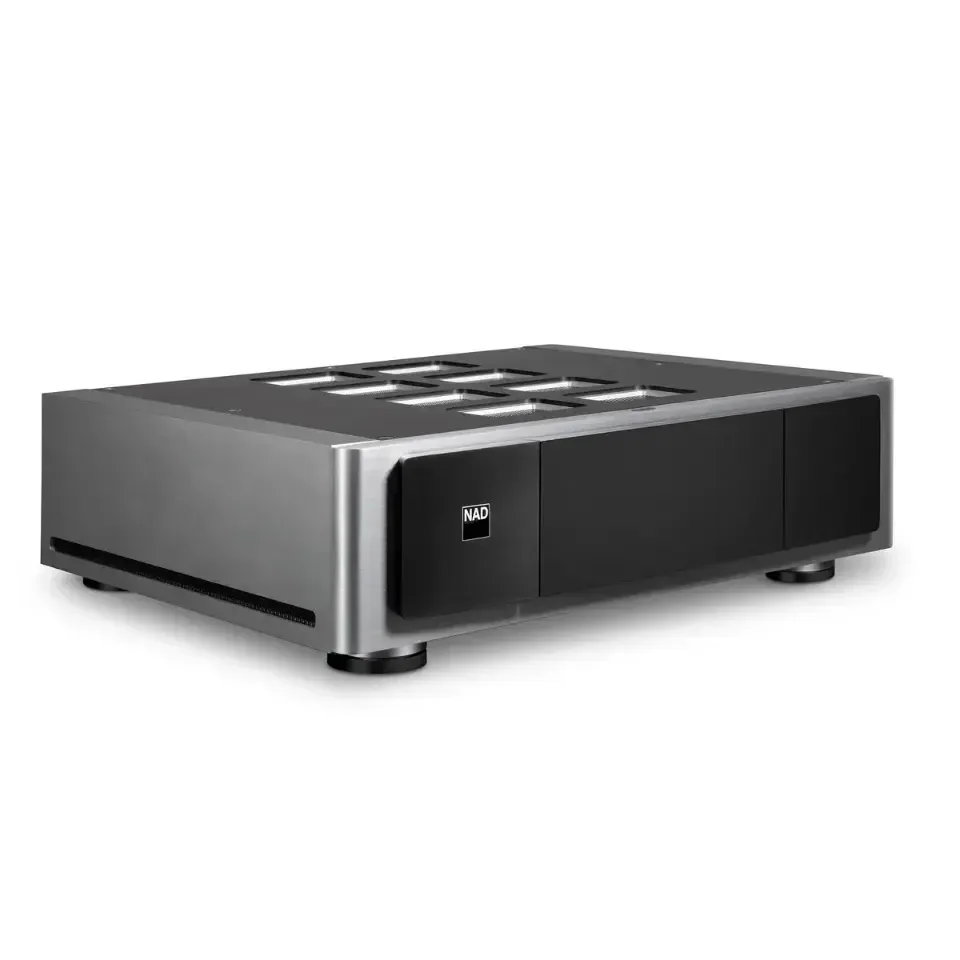

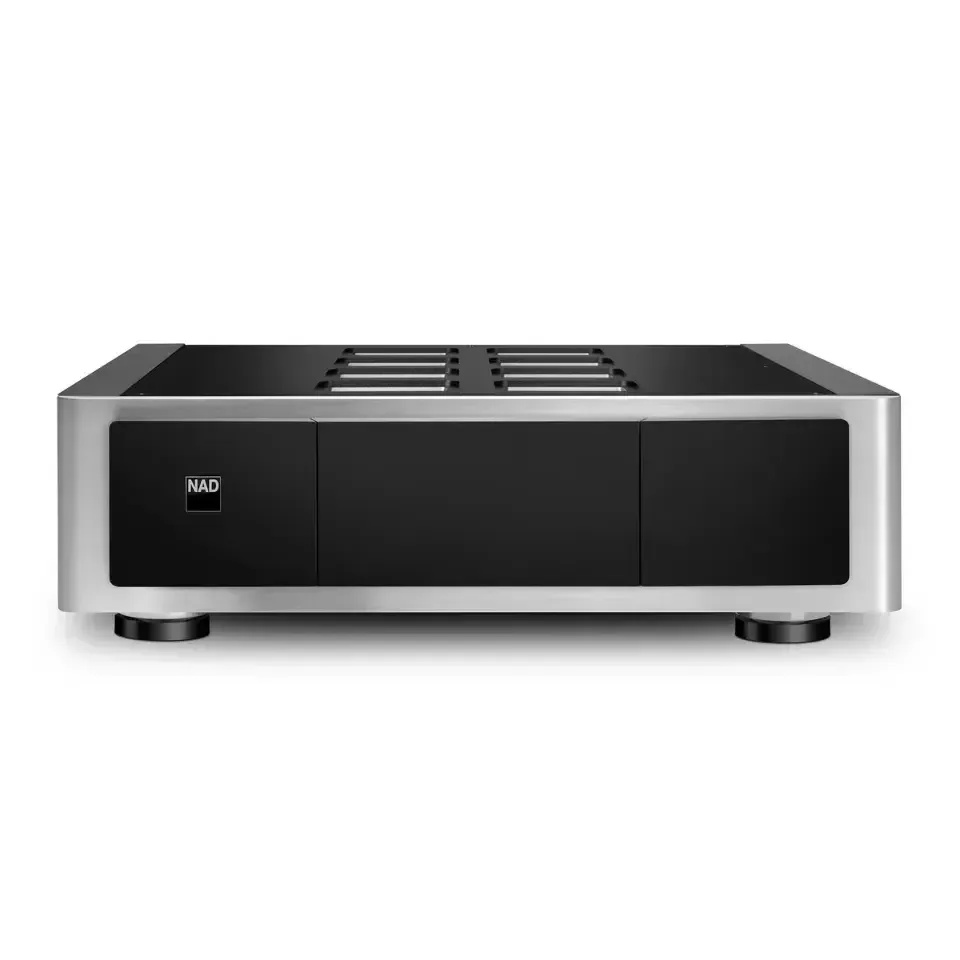

NAD M23 V2

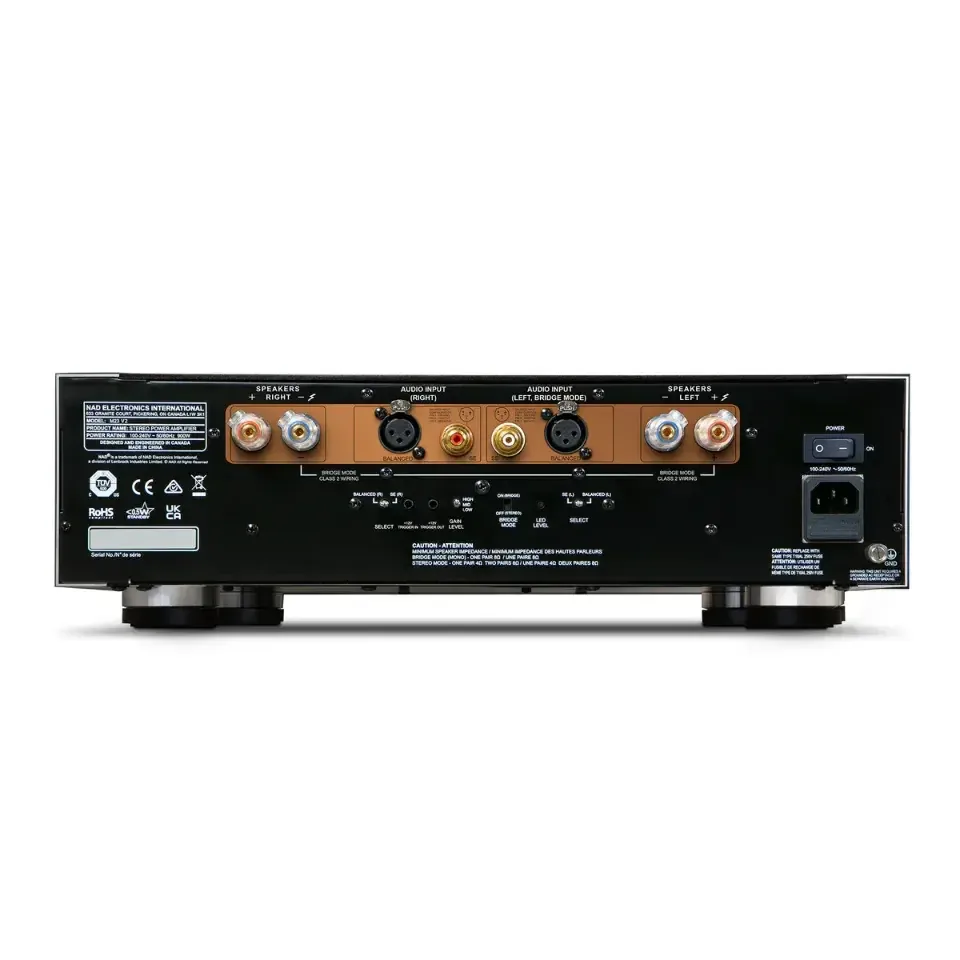

STEREO POWER AMPLIFIER The NAD M23 V2 Stereo Power Amplifier builds on an already accomplished design with a more advanced implementation of Purifi’s second-generation Eigentakt™ amplification and NAD’s HybridDigital architecture. Delivering 200 watts per channel into 8 ohms and 380 watts into 4 ohms, it is designed to drive loudspeakers with confidence while maintaining composure across the full dynamic range of music. The M23 V2 allows complex passages to remain clear and composed, even at higher listening levels, resulting in a presentation that feels effortless, precise, and true to the original performance. KEY FEATURES Second-generation Purifi Eigentakt™ amplification NAD HybridDigital™ design and engineering 200W per channel into 8 ohms; 380W per channel into 4 ohms (continuous) 700W mono continuous output in bridged mode Virtually immeasurable noise, harmonic, and intermodulation distortion Flat, wide frequency response into any loudspeaker Auto-sensing balanced XLR and single-ended RCA input Three-position adjustable gain control Intelligent 12V trigger with delay for multi-amp systems ANALOG AUDIO INPUT/SPEAKER OUT Input impedance (R and C) Single-ended: 56 kohms + 200 pF Balanced: 56 kohms +200 pF Frequency response (1W into 8 Ohms) ±0.06dB (20-20kHz) Rated output power into 8 Ohms and 4 ohms(Stereo mode) >200W into 8 Ohm, >380W into 4 Ohm Rated output power into 8 Ohms (Bridge mode, ref. 20 Hz-20 kHz at rated >700W into 8 Ohm THD (20 Hz – 20 kHz) 210 W (0.1 % THD 1 kHz 8 ohms) Clipping power (Bridge mode, at 1 kHz 0.1 % THD) > 770W IHF dynamic power (Stereo mode, at 1 kHz) 8 ohms: 260 W IHF dynamic power (Bridge mode, at 1 kHz) 1017W Peak output current >25 A (in 1 ohm, 1 ms) Damping factor >800 (ref. 8 ohms, 20 Hz to 6.5 kHz) Frequency response ±0.06 dB (stereo), ±0.054 dB (bridged) 20 Hz -20 kHz -3 dB at 60 kHz Channel separation High gain RCA: >97dB, Low gain XLR: >115dB (1kHz) Stereo Mode input sensitivity (for 200 W in 8 ohms) Low gain: 4.5V (low gain), 2.5V (Mid gain), 1.4V (High gain) Stereo Mode Gain 19dB (low), 23.9dB (mid), 29.2 (high) Bridge Mode Gain 25.1dB (low), 30dB (mid), 35.2 (high) Standby Power
