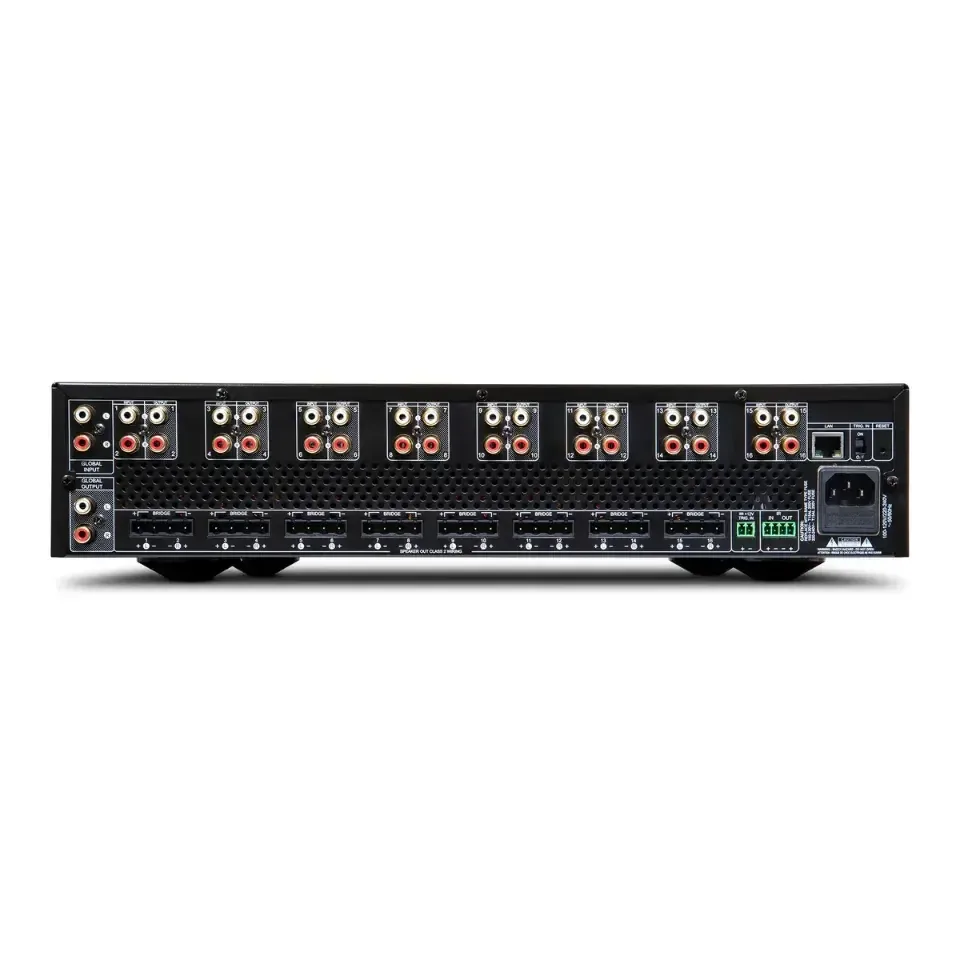

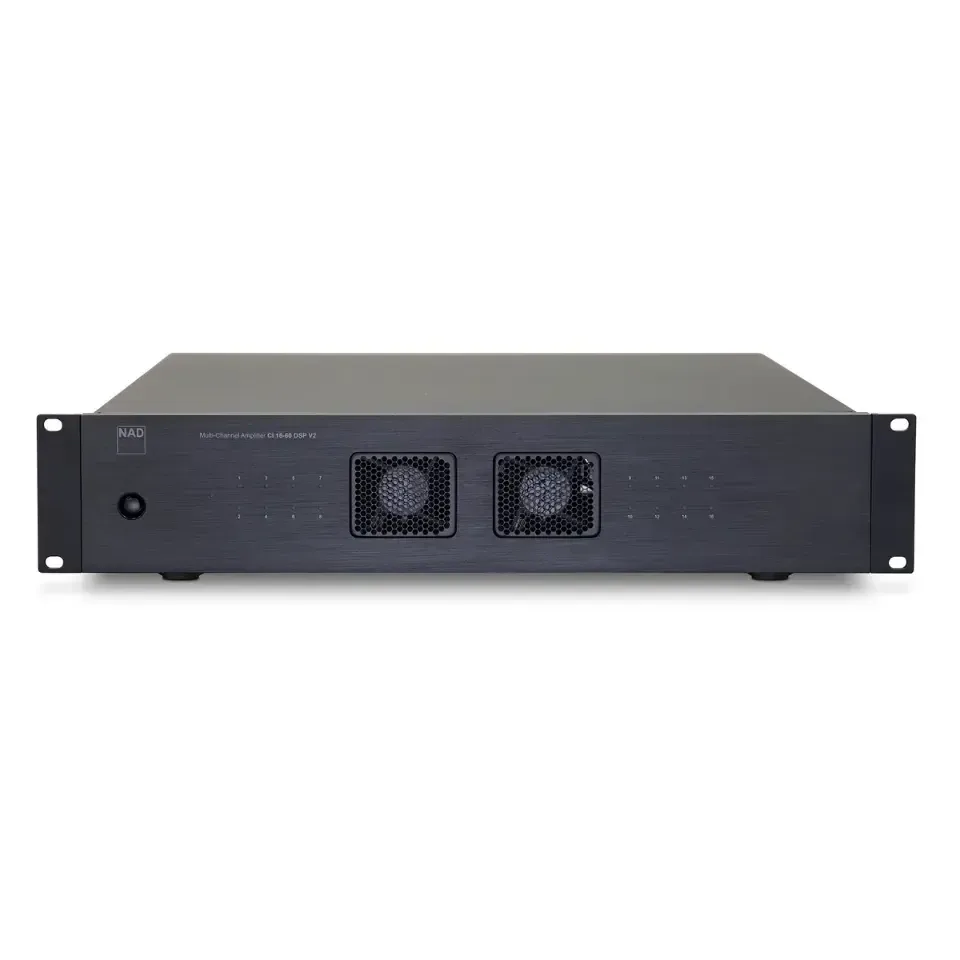

NAD CI16-60 DSP V2

MULTI-CHANNEL NETWORK POWER AMPLIFIER The NAD CI 16-60 V2 Multi-Channel Amplifier designed specifically for modern custom installation systems. Delivering sixteen channels of clean, efficient power, the CI 16-60 V2 is a perfect match for the NAD CI580v2 Four Zone Network Music Player, making a high quality but extremely cost effective combination for distributed audio and system, where reliability and consistency are critical. NAD’s HybridDigital™ amplification ensures stable performance with reduced heat and energy consumption, making it well suited for continuous operation. With simple set up via the web UI, flexible channel configuration, and dependable sound quality, the CI 16-60 V2 provides a robust amplification platform for scalable whole-home and commercial audio systems. KEY FEATURES 16 channels of HybridDigital amplification for distributed audio systems 60 watts per channel into 8 ohms Bridgeable channel pairs for high-power output when required Rack-mount chassis for space-efficient installations Optimized for continuous, long-term operation Line-level inputs and loop outs forflexible system compatibility Automation-friendly trigger and control options Designed for scalability in large multi-zone systems GENERAL Continuous output power into 8 ohms 60 W (all channels driven, 1kHz 0.05% THD into 4 ohms 65 W (all channels driven, 1kHz 0.05% THD Continuous output power into 8 ohms at Bridged mode 140 W (all channels driven, 1kHz 0.05% THD THD (1 W to 50 W, 8 ohms and 4 ohms) 0.05 % (20 Hz – 3 kHz) Signal-to-Noise Ratio 80 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms) Clipping power (all channels driven) 60 W (1 kHz 8 ohms 1 % THD) Clipping power into 8 ohms at Bridged mode 150 W (1 kHz 1 % THD - all channels driven) IHF Dynamic Power (all channels driven) 8 ohms: 65 W IHF Dynamic Power (two channels driven) 8 ohms: 70 W IHF dynamic power (Bridged mode, all channels driven) 8 ohms: 270 W IHF Dynamic Power (two channels driven) 8 ohms: 280 W Peak output current 15 A (1 ohm, 1 ms) Damping factor 110 (20 Hz to 1 kHz 8 ohms) Frequency response ±1dB (20 Hz - 20 kHz) Channel separation 60 dB (1 kHz) Maximum undistorted input level 2900 mV Input sensitivity (for 50 W in 8 ohms, maximum volume) 760 mV Input impedance 20 kohms//220pF Analog input audio sense threshold (one channel with signal) 3 ± 0.5 mVrms (ref. 100 Hz - 10 kHz) Trigger IN level 3 - 30 Vdc Standby power 0.5W DIMENSION AND WEIGHT Gross dimensions (W x H x D)* 483x100x435mm Net Weight 10.3 kg (22.7 lbs) Shipping Weight 12.8 kg (28.2 lbs) *Specifications subject to change without notice.
