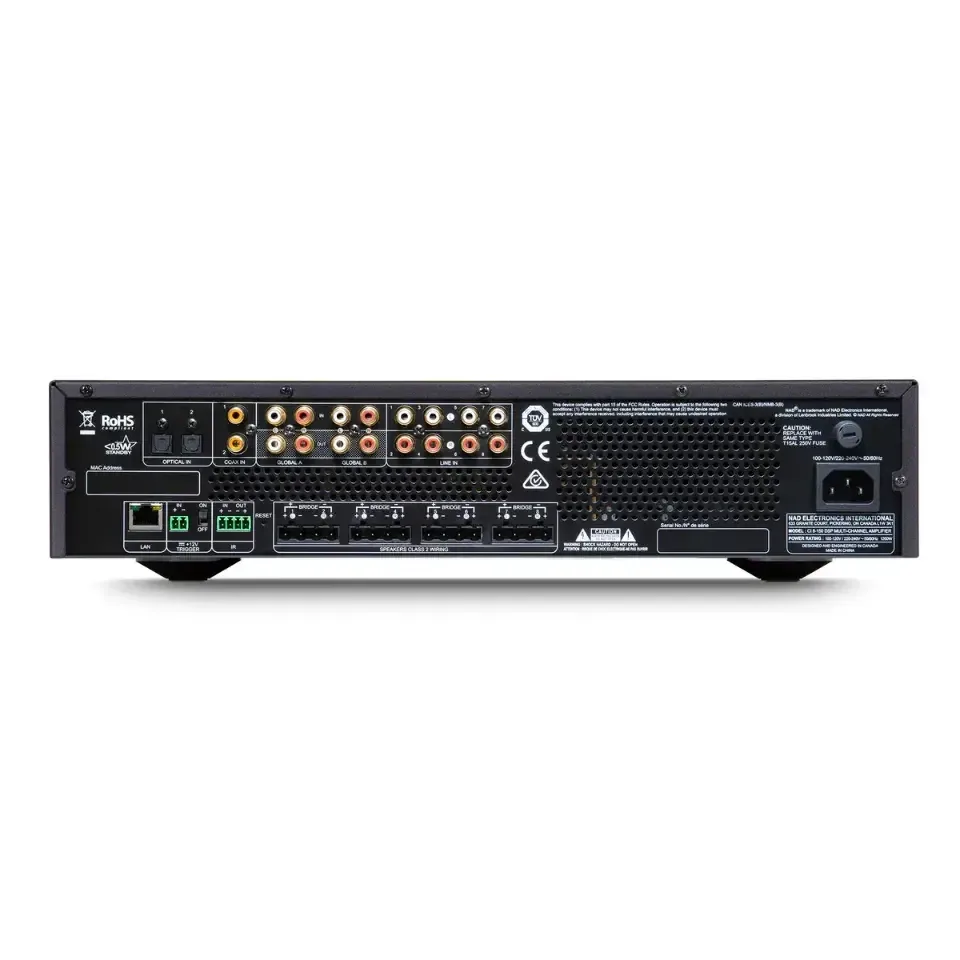

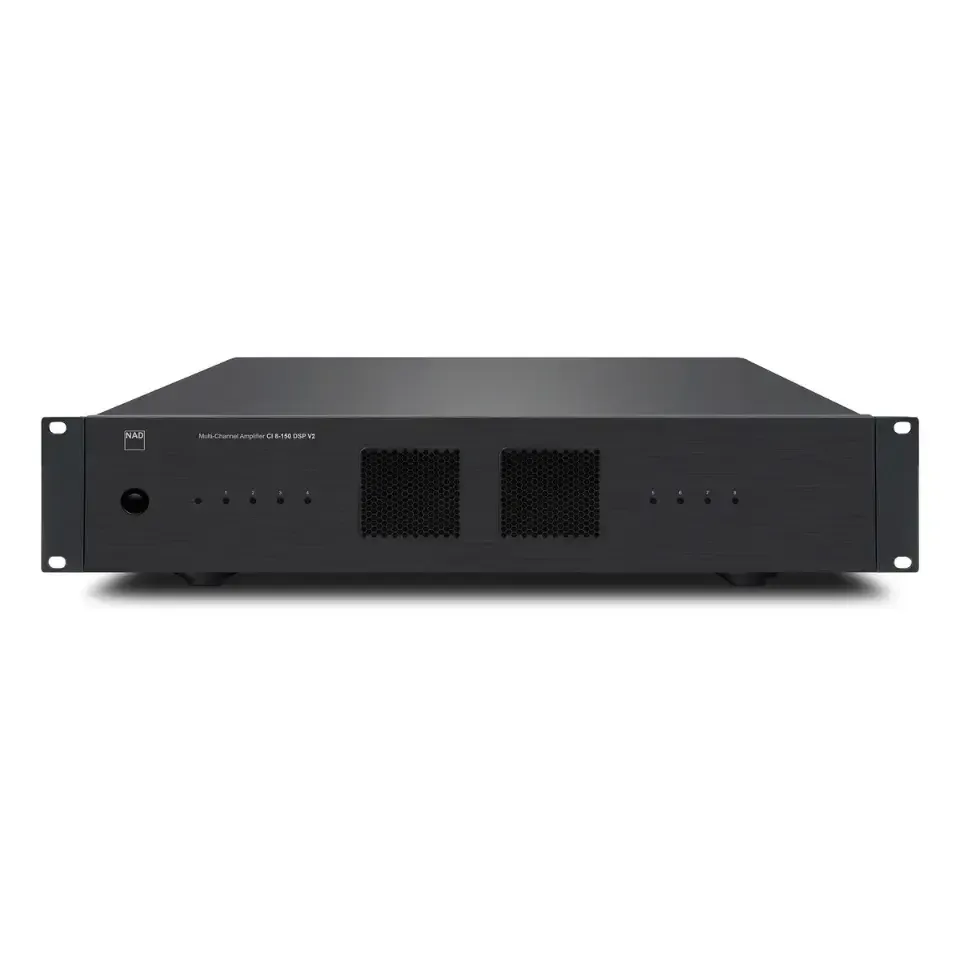

NAD CI18-150 DSP V2

The NAD CI 8-150 DSP V2 Multi-Channel Amplifier is designed to deliver the most refined audio performance to the rack space. Powerful, controlled sound with precision required for the most demanding installated audio systems. With eight channels of high- performance amplification and onboard digital signal processing, it provides installers with the tools to optimise audio for each zone and loudspeaker. Built on NAD’s HybridDigital™ amplification platform, the CI 8-150 DSP V2 delivers clean, efficient power while maintaining stability during continuous operation. KEY FEATURES 8 channels of Hybrid Digital amplification with custom Hypex nCore output stages, for high end distributed audio and home theatre systems 150 watts per channel Full Disclosure Power - continuous into 8 ohms, all channels running. Setup and configuration via intuitive webUI Integrated DSP for system optimization Bridgeable channel pairs for high-power configurations Rack-mount chassis for professional installations Line-level & Digital inputs Flexible power options via signal sense and 12v trigger GENERAL Continuous output power into 8 ohms 150 W (ref. 20 Hz-20 kHz at rated THD - all channels driven) Continuous output power into 4 ohms 180 W (ref. 20 Hz-20 kHz at rated THD - all channels driven) Continuous output power into 8 ohms at Bridged mode 280 W (ref. 20 Hz-20 kHz 0.02% THD - all channels driven) THD (20 Hz – 20 kHz) 0.02% (1 W to 120 W, 8 ohms and 4 ohms) Signal-to-Noise Ratio 90 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms) Clipping power (All channels driven) 160W(1kHz8ohms 0.1%THD) Clipping power into 8 ohms at Bridged mode 300 W (1 kHz 0.1 % THD - all channels driven) IHF Dynamic Power (all channels driven) - 8 Ohms 180W IHF Dynamic Power (all channels driven) - 4 Ohms 280W IHF Dynamic Power (two channels driven) - 8 Ohms 200W IHF Dynamic Power (two channels driven) - 4 Ohms 360W IHF Dynamic Power (Bridged mode, All channels driven) - 8 Ohms 520W IHF Dynamic Power (Bridged mode, All channels driven) - 4 Ohms 670W IHF Dynamic Power (Bridged mode, Two channels driven) - 8 Ohms 600W IHF Dynamic Power (Bridged mode, Two channels driven) - 4 Ohms 800W Peak output current 26A(1ohm,1ms) Damping Factor 150 (ref. 8 ohms, 20 Hz to 6.5 kHz) Frequency Response ±0.5dB(20Hz-20kHz) Channel Seperation 75 dB (1 kHz) Maximum undistorted input level 3300 mV Input sensitivity (for 150 W in 8 ohms, maximum volume) 1450 mV Analog Input audio sense threshold (one channel with signal) 3 ± 0.5 mVrms (ref. 100 Hz - 10 kHz) Trigger IN level 3-30Vdc Standby power 0.5 W DIMENSION AND WEIGHT Gross dimensions (W x H x D)* 483x90x435mm Shipping Weight 17.6 kg (38.8 lbs) *Specifications subject to change without notice.
