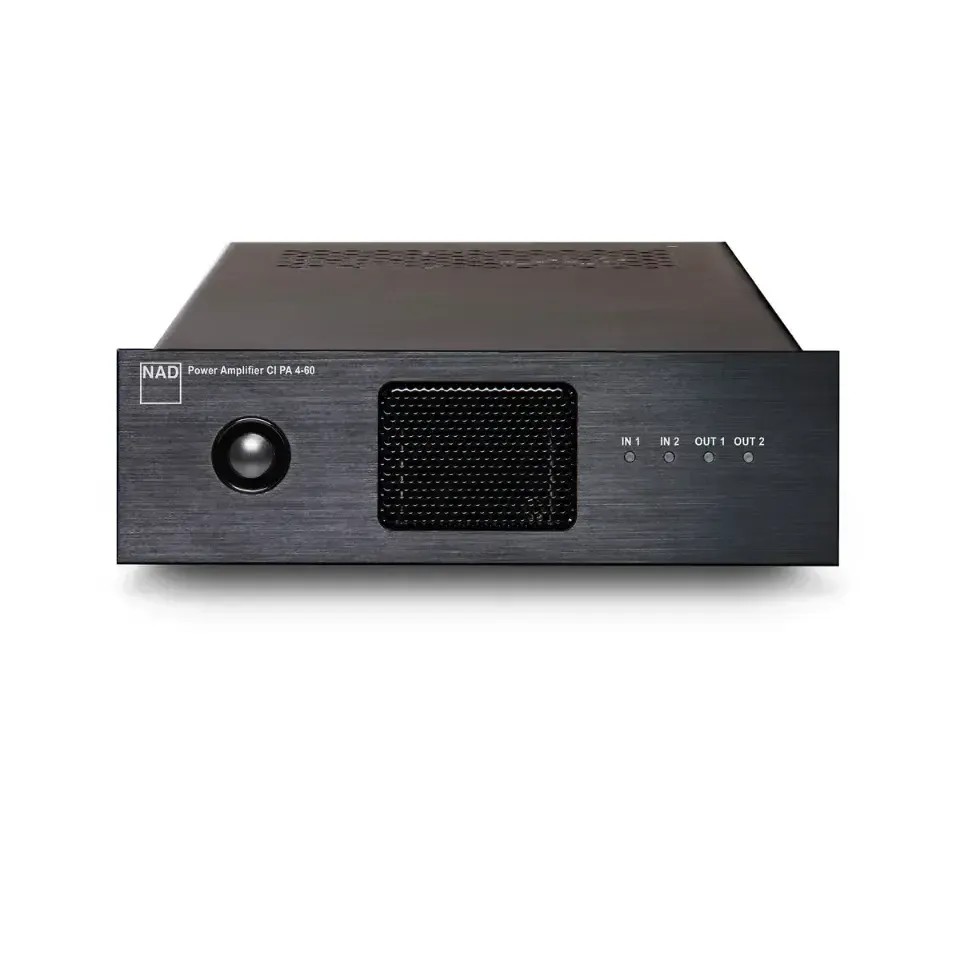

NAD CI PA4-60

POWER AMPLIFIER MODULE The NAD CI PA4-60 is a compact, high-performance four-channel power amplifier designed specifically for custom installation and distributed audio systems. Delivering a total of 240w of continuous power into 8 ohms using NAD’s proven DirectDigital™ amplification, it provides clean, reliable power for multi-room music and home theatre installations. Dynamic Power Management allows the CI PA4-60 to be configured as a higher-power two- channel amplifier when required, giving installers greater flexibility across different system designs. Housed in a one third width 1U rack-mount chassis with efficient thermal management, the CI PA4-60 is built to deliver consistent, high-quality sound with maximum rack density. KEY FEATURES Four-channel power amplification delivering 60 watts per channel into 4/8 ohms or two-channels at 120 watts per channel. DirectDigital™ amplification for efficient, low- distortion performance Low noise and distortion, delivering clean audio for distributed audio and home theatre systems Compact one third width, 1U rack-mount chassis for efficient rack integration with ChassisLink Efficient thermal design for reliable long-term operation Universal power supply Line-level inputs for flexible system compatibility with gain control and stereo/mono settings, plus a pre-out for looping to another amplifier. Auto-sense and trigger control for seamless system automation AUDIO Signal-to-Noise Ratio -102dBA Distortion THD+N, 0.005% Amplification DirectDigital™ Rated Power Output Dynamic Power Management - 120W x 2 or 60W x 4 (8 Ohms) IHF Dynamic Power 300W (4ohm)/200w (8ohm) CONNECTIONS Power Supply Universal 2-pin AC cord input (100-240AC) Inputs 2 x Stereo RCA Outputs 1 x Stereo RCA Pre-Out, 2 x Speaker outputs Speaker Terminals 2x 4-PIN Snap On PHX 5.08mm Connector (Supports up to 12 AWG) 12v Trigger Input x1 (Unit Power On) 12v Trigger Output x1 USER INTERFACE & CONTROL Input Gain Control x2 Input Gain Potentiometers (-6 to +6 dB range) Power Mode Control 3-way switch (Power Button, 12v Trigger, Signal Sense options) Input Control Input 1 Local/Global, x2 Input Stereo/Mono selection Status Indicator Power Status LED Source Status Indicator x2, Connected Input Active Output Status Indicator x2, Output pair 1, Output Pair 2 (Output active, Temperature/Protection warning) GENERAL Finish Black Included Accessories 120V AC Power Cord Max Power Consumption TBD Storage Environment -10°C to 50°C, 20% to 80% relative humidity Operating Environment 0°C to 40°C Dimensions (Product) (WxHxD metric) 146.5 x 44 x 384 mm Weight (excluding rack ears & connectors) 2.35 kg/5.18 lbs Dimensions (Shipping, Single Unit) (LxWxH metric) 520 x 228 x 140 mm Weight 3.35 kg/7.4 lbs Dimensions (Shipping, Masterpack) Units per carton: 6 Weight 20.3kg GS1/UPC/EAN Codes Black SKU/Version PA4-60 Generation 1 NOTE *Specifications subject to change without notice.
