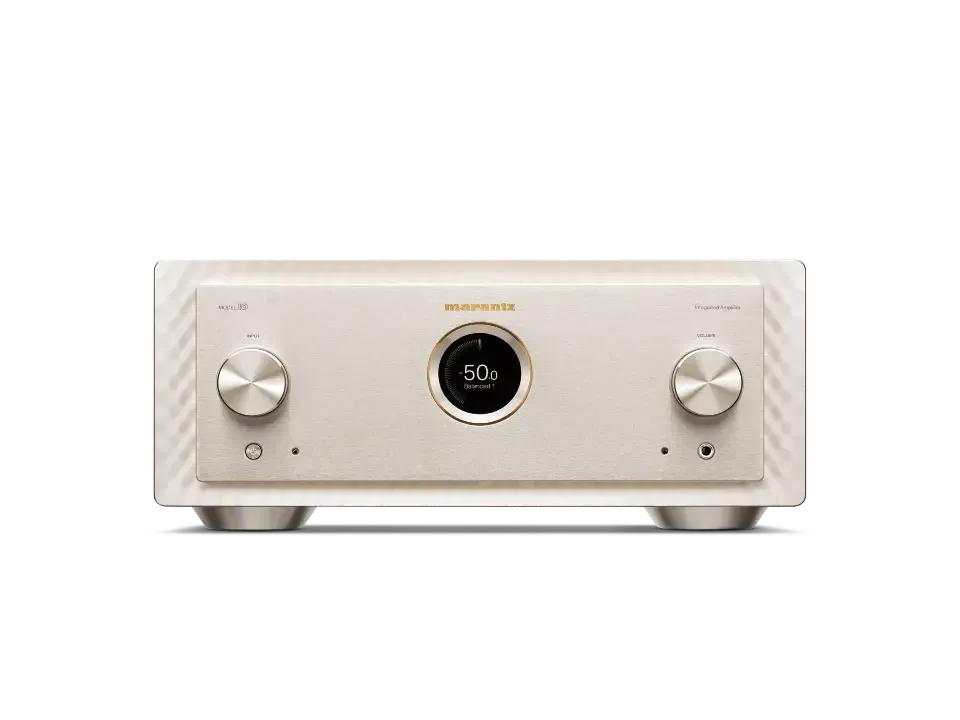

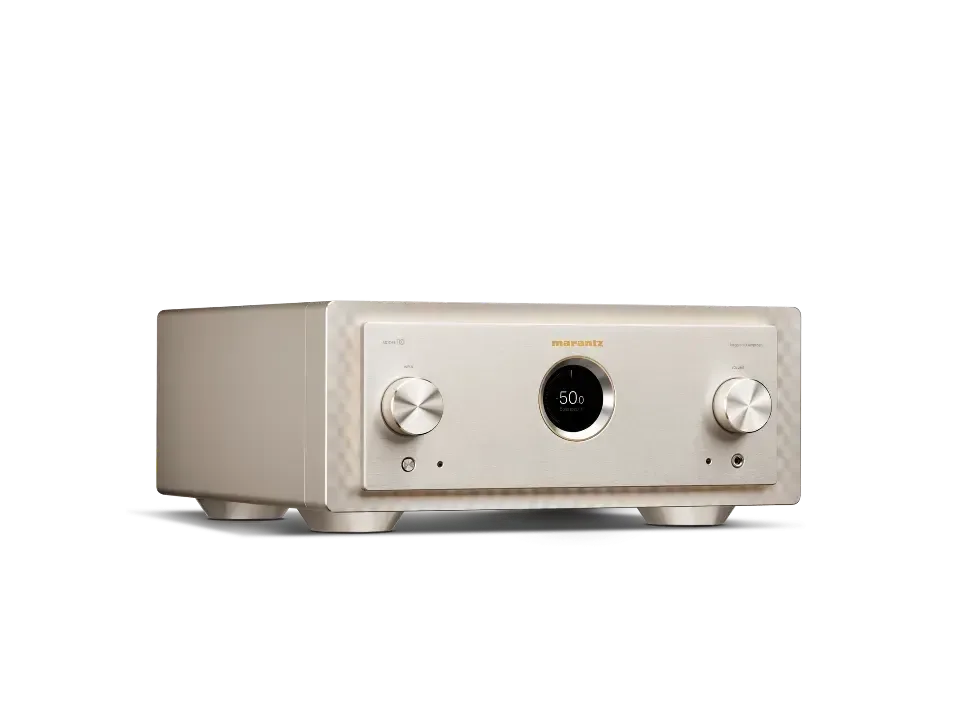

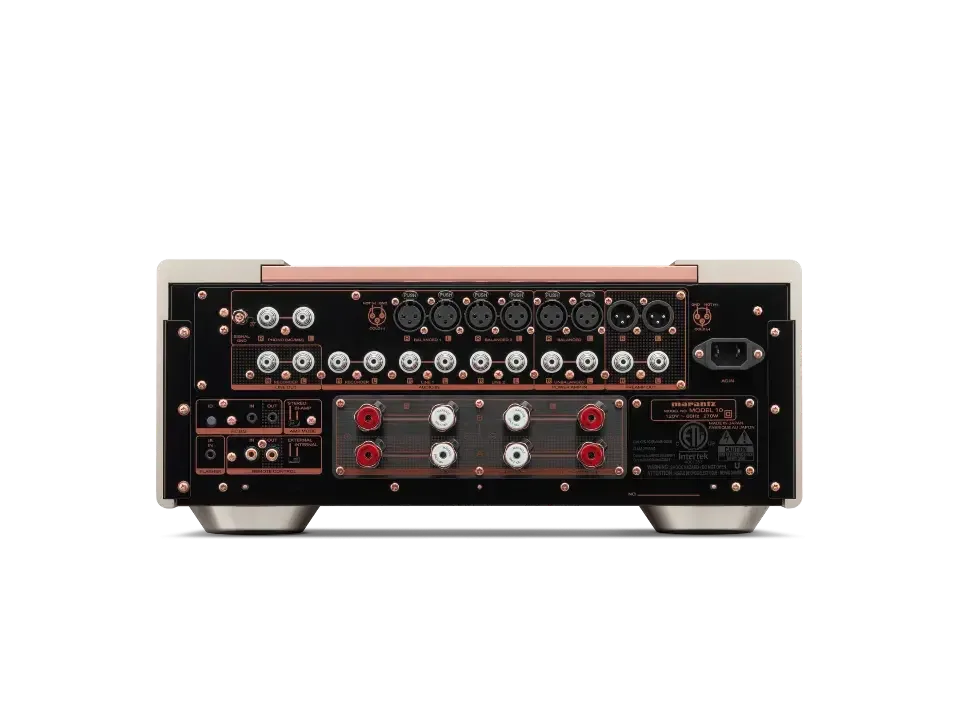

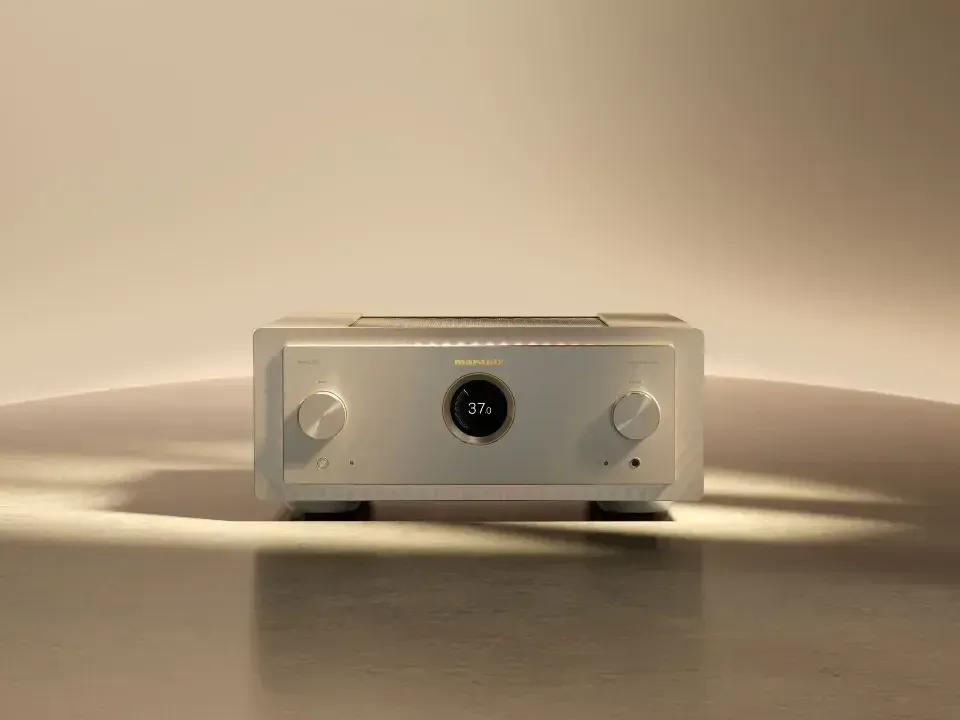

Marantz Model 10 Champagne

MODEL 10 is de nieuwe referentie voor het ontwerp van versterkers. Met zijn nieuw ontworpen dual-mono symmetrische versterkertopologie is dit de krachtigste, best presterende Marantz-versterker ooit. 2 kanalen 250 watt per kanaal Volledig nieuwe Marantz SMPS Volledig gebalanceerde dubbele monoversterker Phono MM/MC Verkoperd chassis General Unit (W × H × D mm) 440 × 192 × 473 Cabinet Size 440 × 192 × 422 Net weight 33.7kg Packaging Dimensions (W × H × D mm) 600 × 379 × 540 Packaging gross weight 39.0kg Carton Color 1 Color (Material color: Brown Printing: Black) Panel Color Black / Marantz Champagne Front (Center) Panel Anodized machined aluminum Back-shell AAnodized machined aluminum Front panel illumination Yes (All sides, Dimmer) Side cover Aluminum (Thickness: Max 15.8mm) Top cover Aluminum (Thickness: 6mm) Top cover (Centor) ventilation hole material Stainless mesh Interior ilumination Yes, dimmable Rear Panel Copper Plated Chassis Material Copper Plated Bottom Layer / Bottom plate Triple layer Copper plated Front panel illumination Yes (All sides, Dimmer) Volume Knob Solid aluminum (Bearing construction) Input Selector Solid aluminum (Bearing construction) Foot Solid Alminum Copper plated (H: 18.5mm) Heatsink for Power Amplifier Extruded Aluminum Audio Rated Output Power 250W + 250W (8ohm,20Hz-20kHz,THD 0.05 %) 500W + 500W (4ohm,20Hz-20kHz,THD 0.05 %) Speaker Impedance 4~16ohm Frequency Response 5Hz~60kHz +0dB/-3dB 20Hz~20kHz +0dB/-0.3dB Total Harmonic distortion 0.005% (125W, 8ohm, 20-20kHz) (CCIF IMD, DFD IMD) Damping Factor 500 (8ohm, 20Hz-20kHz) Input Sensitivity: Phono input MM: 3.6 mV / 36 kohm MC (Low): 400 μV / 33 ohm MC (Mid): 400 μV / 100 ohm MC (High): 400 μV / 390 ohm RIAA Deviation 20 Hz - 20 kHz ±0.5 dB (MM/MC) Phono Maximum Input MM : 80mV MC : 8mV Input Sensitivity: CD/LINE/RECORDER 350 mV/41kohm (Unbalanced) 700 mV/36kohm Input Sensitivity: Power Amp input Unbalanced: 1.58V / 41kohm (Gain : 29dB) Balanced: 3.16V / 15kohm (Gain : 24dB) SN Ratio PHONO (MM): 88dB PHONO (MC): 76dB CD: 122dB Balanced: 122dB Headphone Output Level 130mW / 32 ohms Tone Control BASS : 50Hz ±10dB TREBLE : 15kHz ±10dB Power Consumption 270W 0.1W (at Standby) Audio/ Video Phono Input Yes (MM / MC) Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position) PHONO (MC Low): 400 μV / 33Ω PHONO (MC Mid): 400 μV / 100Ω PHONO (MC High): 400 μV / 390Ω PHONO (MM): 3.6 mV / 39kΩ Analog Input (include Phono) / REC Out (RCA) 4 /1 (LINE1, LINE2, PHONO: Thick nickel plated independent terminals) (RECORDER: Thick nickel plated independent terminals) Balanced XLR input 2 Power Amp Direct Yes [RCA (Thick nickel plated independent terminals) / XLR] Pre out Yes [RCA (Thick nickel plated independent terminals) / XLR] 2 sets of Speaker Output Yes (Bi-wiring) Speaker Terminal Marantz Original SPKT-100+ 2 (High quality and high-purity copper plated) Headphone Output 1 (Turns off the speaker automatically when headphone is inserted) Control/ Other Remote Control Bus Terminal Yes (RC-5 In / Out) Remote Internal / External Switch Yes Flasher Input Yes AC Inlet Yes Other F.C.B.S. (Floating Control Bus System) Remote Controller 10 series Universal Remote control Unit control (Button) Tact Switch : 1 POWER Unit control (Knob) 2 VOLUME, INPUT SELECTOR LED POWER: 1 White Protection: 1 Orange Illumination (Edge): White Interior: White Front Panel Display New HD TFT Color Display Dimmer for Front Display 20 steps Level meter Yes (HD Display) Volume Display -infinity/-99.5dB - 0dB / 0.5 step (default) 0-100 / 0.5 step switchable Last Function Memory Yes Auto Standby Mode Yes Remote Controller RC004PMND Battery Yes (AAA ×2) Power Cord Yes (ALL region / Audio Grade / OFC) Other CoA card
