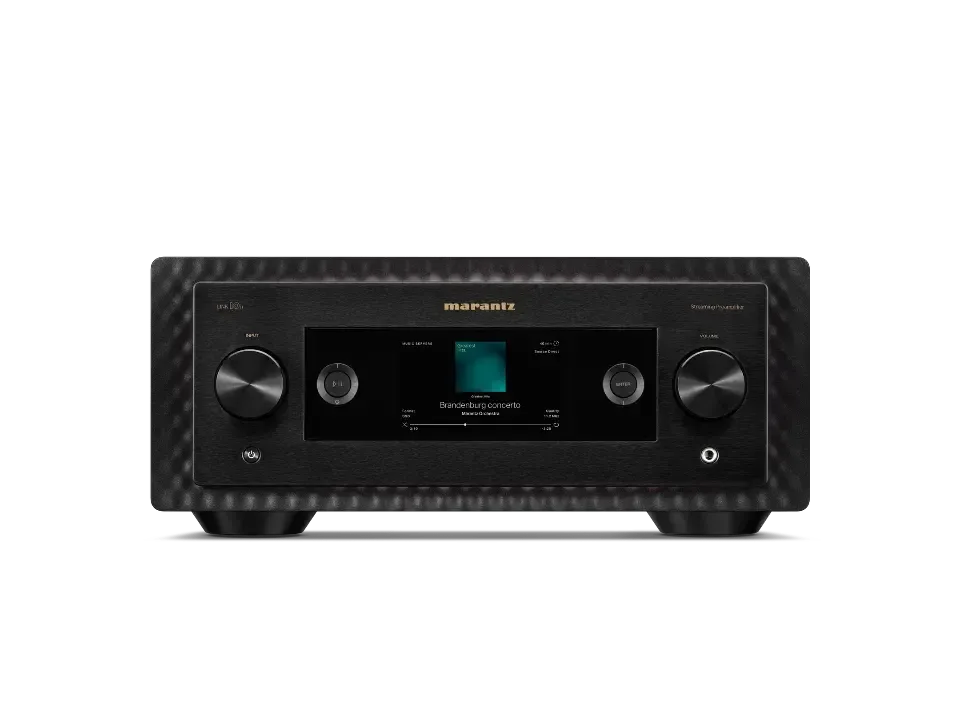

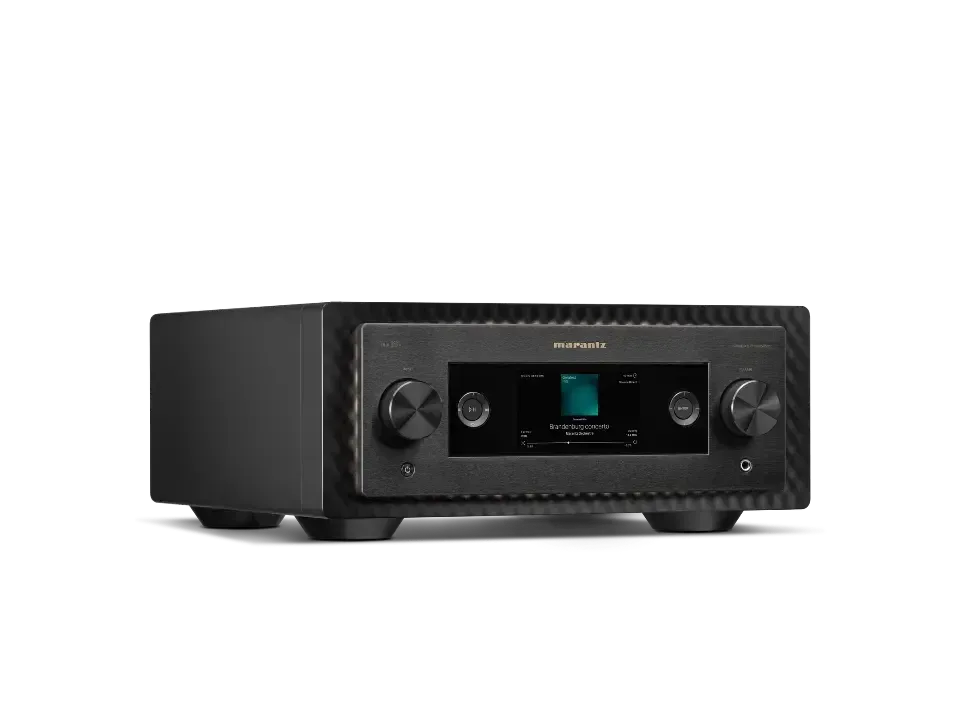

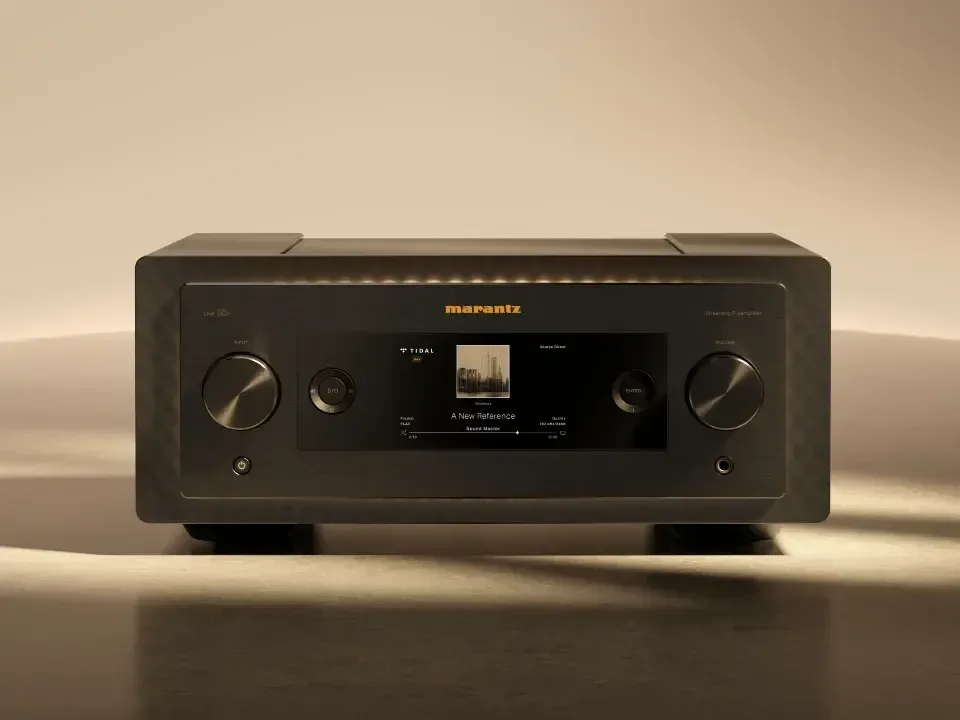

Marantz LINK 10n

De LINK 10n is een netwerkaudiospeler van referentieklasse die is ontwikkeld en gebouwd met de technologie en het vakmanschap waardoor MODEL 10 en de SACD 10 zich als beste in hun klasse hebben doen gelden. Ondersteuning voor Hi-Res audio HEOS® ingebouwd HD TFT-scherm met hoge resolutie kleuren Nouveaux circuits HDAM et MM HDMI ARC met CEC-ondersteuning 2.1-kanaals subwooferuitgang General Unit (W × H × D mm) 440 × 192 × 472 (with antenna) Cabinet Size 440 × 192 × 422 Net weight 33.3kg Packaging Dimensions (W × H × D mm) 600 × 379 × 540 Packaging gross weight 38.7g Carton Color 1 Color (Material color: Brown Printing: Black) Panel Color Black / Marantz Champagne Front (Center) Pane Aluminum Back-shell Aluminum Front panel illumination Yes (All sides, Dimmer) Side cover Aluminum (Thickness: Max 15.8mm) Top cover (Centor) ventilation hole material No Interior ilumination No Rear Panel Triple layer Copper-plated Chassis Material Copper-plated Bottom Layer / Bottom plate Copper-plated Volume Knob Solid aluminum (Bearing construction) Input Selector Solid aluminum (Bearing construction) Foot Solid aluminum with Copper Audio Frequency Response PCM 2Hz–50kHz (-3dB) Harmonic distortion PCM 0.0004% S/N PCM 0.0004% Dynamic range PCM 0.0004% Line Output Leve UNBALANCED : 2.0Vrms BALANCED : 4.0Vrms Headphone Output Level 130mW / 32 ohms Frequency Response (analog input) 5 Hz–100 kHz (+0dB/-3 dB) Harmonic distortion (analog input) 0.001% (20Hz–20kHz) S/N PHONO (MC) : 76dB HONO (MM) : 88dB BALANCED : 122dB LINE : 122dB Phono Input sensitivity MM : 8mV MC : 80mV Phono Input impedance MC Low : 32 ohms MC Mid : 100 ohms MC High : 390 ohms MM : 39 kohms Power Consumption 7W Less than 0.3W (at Standby) Less than 2W (at Network Control On: Bluetooth, Ethernet, Wi-Fi, USB) Audio Feature Output Circuit New HDAM Power Transformer Toroidal Pre Amplifier Circuit New HDAM High Grade Full balance Volume Electric (MUSES 72323) Variable gain Bass / Treble / Mid / Balance Control Yes / Yes / No / Yes Type of Tone Control Electric Headphone Circuit Discrete H/P Amp Gain Setting Yes (Low / Mid / High) H/P On.Off Setting H/P Off automatically, when in use DAC Circuit New MMM-Conversion Dither MMM-Stream (Dither 1, 2, Off) Noise Shaper MMM-Stream Balanced, Natural, Dynamic Music, Dymanic Voice) Digital Filter MMM-Stream Filter 1, 2 Selectable Jitter Reducer Yes DAC Master Clock Design (No Support for Network Playback) Yes Asynchronous mode (for USB-B input) Yes Isolator (for USB-B input) Yes (Complete Isolation System Duo) Fixed Analog Output (RCA) Cinch × 1 Thick nickel plated independent terminals Pre / Variable Audio Output (RCA) Cinch × 1 Thick nickel plated independent terminals Fixed Balanced XLR Output Yes (1 Pair) Pre/ Variable Balanced XLR Output Yes (1 Pair) RCA Input Cinch × 1 Thick nickel plated independent terminals Balanced XLR Input Yes (1 Pair) Phono input Yes (MM / MC) Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position) Thick nickel plated independent terminals Optical input / output (Maximum Support) 2 / 1 (on/off switchable) 44.1 kHz - 192 kHz Coaxial input / output (Maximum Support) 1 / 1 (on/off switchable) 44.1 kHz - 192 kHz HDMI input / output No / Yes (ARC) Headphone Output Yes (Φ6.3 ×1) Subwoofer Yes with LP filter adjustable Easy to Use App HEOS app Remote Controller 10 series universal Remote control Front Panel Display New HD TFT Color Display Display Language N: (English/ German/ French/ Italian/ Dutch/ Spanish/ Swedish/ Polish/ Russian) U: (English/ French/ Spanish) K: ( Simplified Chinese/English) F: (Japanese/ English) Dimmer for Front Display 20 steps Level meter No Volume Display 0 –100 / 0.5 step (defalut)-infinity/-99.5dB - 0dB / 0.5 step switchable Voice Assistant Apple Siri Google Assistant Control with App via Network Player (Use Remote Control Bus) No External Amp Control with App (Use Remote Control Bus) Yes Synchronously turn on amplifier and switch the input (Use Remote Control Bus) Yes HDMI CEC Yes Remote Controller RC004PMND Battery Yes (AAA ×2) Power Cord Yes (ALL region : Audio Grade : OFC) Other Stereo RCA Cable ×1 Remote connector cable ×1 CoA card
