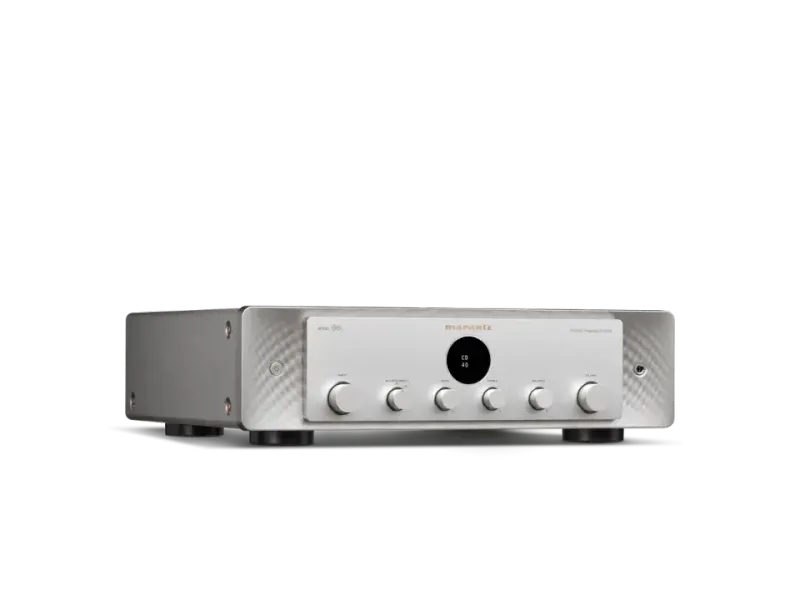

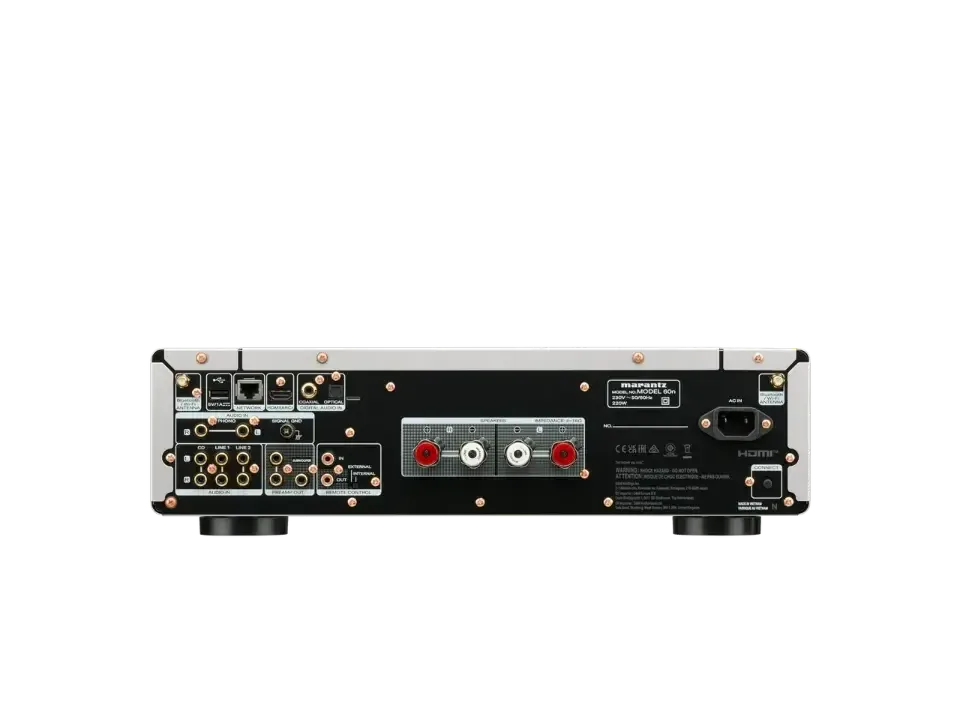

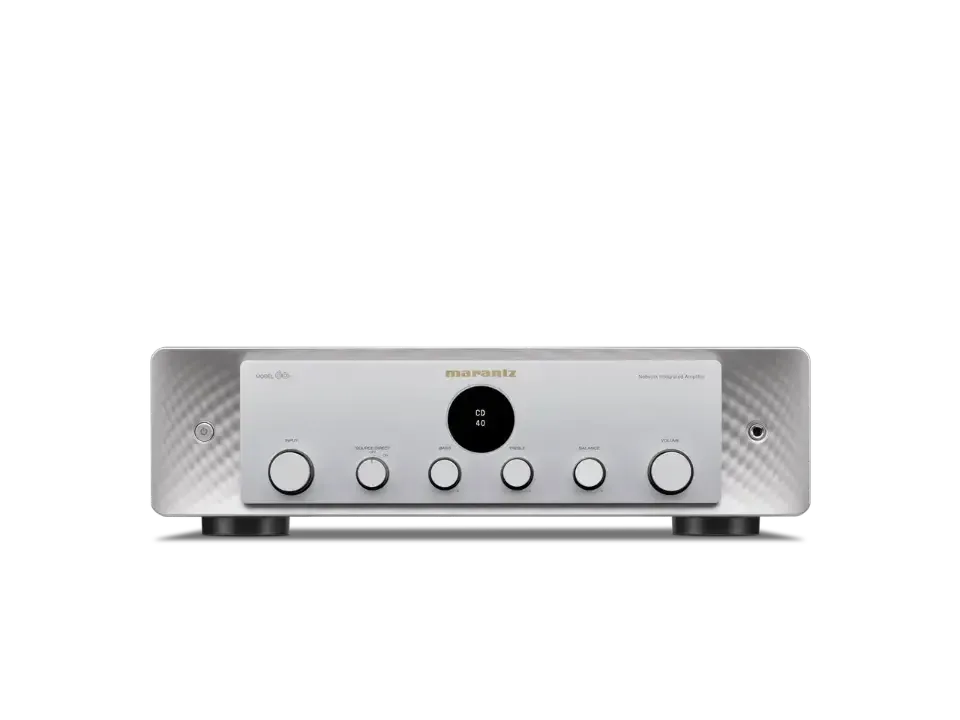

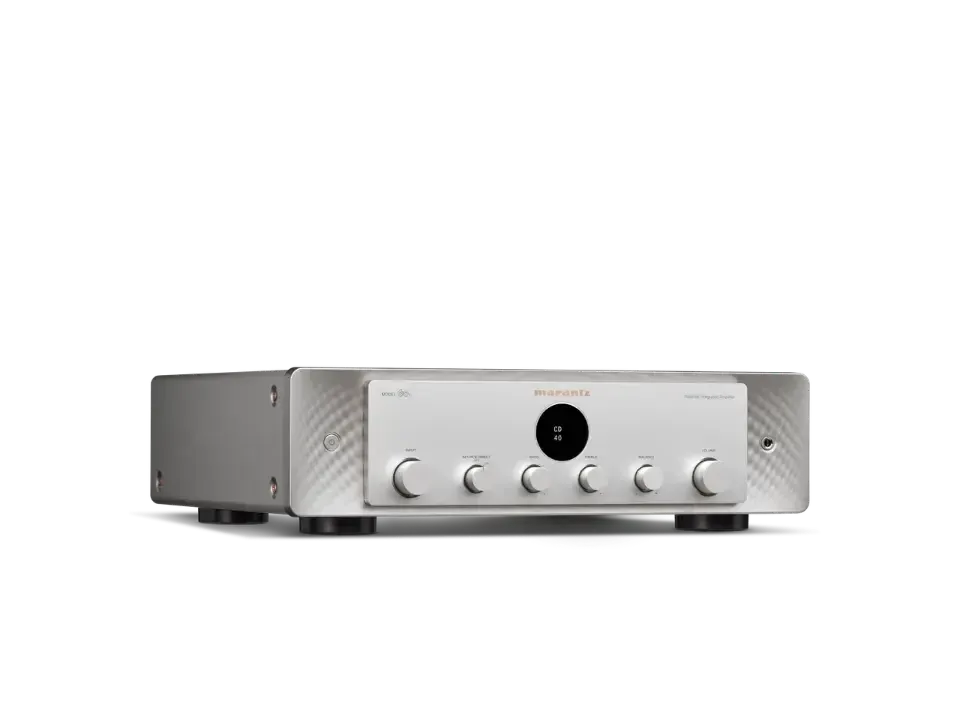

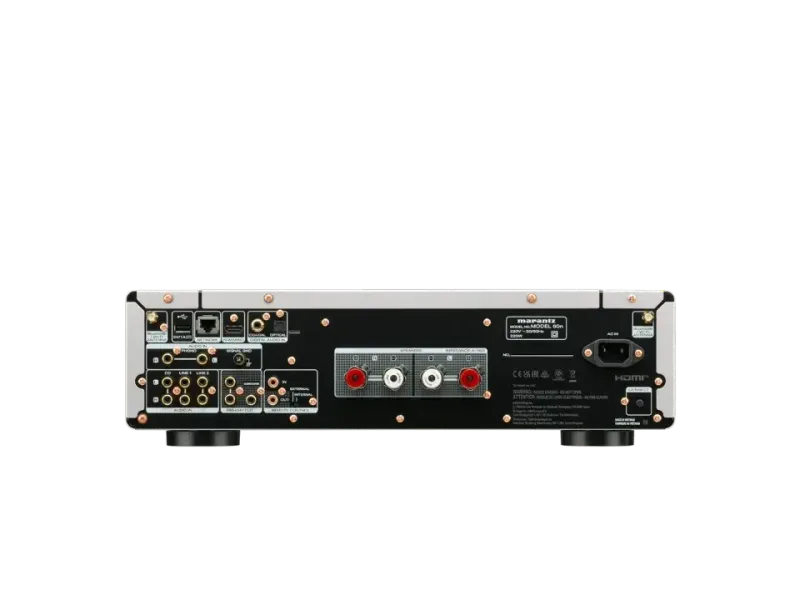

Marantz Model 60n/ N1SG

60W Geïntegreerde netwerkversterker Powered by HEOS™ De netwerkversterker MODEL 60n is ontworpen voor uitzonderlijke hifi-prestaties en uitgebreide connectiviteit. Stream met hoge resolutie via HEOS® Built-in, sluit uw cd-speler of platenspeler aan en rond uw hifi-installatie af met de luidsprekers van uw keuze, plus, als optie, een subwoofer. 60W per kanaal HEOS® Built-in HDMI ARC Marantz HDAM® Hi-Res audio-ondersteuning Cd- en MM phono-ingangen Amplifier Channels 2 PSU Transformer Toroidal Speaker A / B No Speaker Terminals Marantz SPKT-1+ Number of Terminals 2 Power Output (8 / 4 Ohm RMS) 60 W / 80 W Topology Class A/B Audio Components and Technologies Current Feedback Topology Yes HDAM Version SA3, SA2 High Grade Audio Components Yes Customised Components Yes Symmetric PCB Layout Yes Aluminium Extrusion Heat Sink Yes Copper Plated Chassis No Marantz Musical Digital Filtering No Linear Drive Power Supply Yes BI-AMP and Multichannel Option No Shottky Diodes Yes DAC Digital Inputs Coaxial, Optical, USB-A Max PCM Sample Rate 192 kHz / 24-bit Max DSD Sample Rate DSD 4X (11.2 MHz) HDMI 1 ARC Preamp Phono EQ MM Standard Tuner: FM / AM No Audio Adjustments Yes Power Amp Direct No Balanced In / Out No / No Preamp Outputs 1 Subwoofer Output 1 Mono Headphone Out Yes Specifications Frequency Response 5 Hz-100 kHz Total Harmonic Distortion 0.02 % Damping Factor 100< Input Sensitivity: MM 1.9 mV / 47 kOhm Signal to Noise Ratio: MM/MC 87 dB / - Input Sensitivity: High Level 190 mV / 20 kOhm Signal to Noise Ratio: High Level 113dB Treble Control ± 10 dB at 15kHz Bass Control ± 10 dB at 50Hz Metal Front Panel Yes Power Consumption in W 220 Standby Consumption in W 0.3 Auto Power Off Yes Detachable Power Cable Yes Remote Control RC006PM System Remote Function Yes Maximum Dimensions (W x D x H) mm 442 x 431 x 129 Carton Maximum Dimensions (W x D x H) mm 527 x 517 x 255 Carton Weight (inc. product) in kg 15.5 Maximum Dimensions (W x D x H) in 17.4 x 17 x 5.1 Weight in LBS 28.1 Carton Maximum Dimensions (W x D x H) in 20.8 x 20.4 x 10.1 Carton Weight (inc. product) in LBS 34.3
