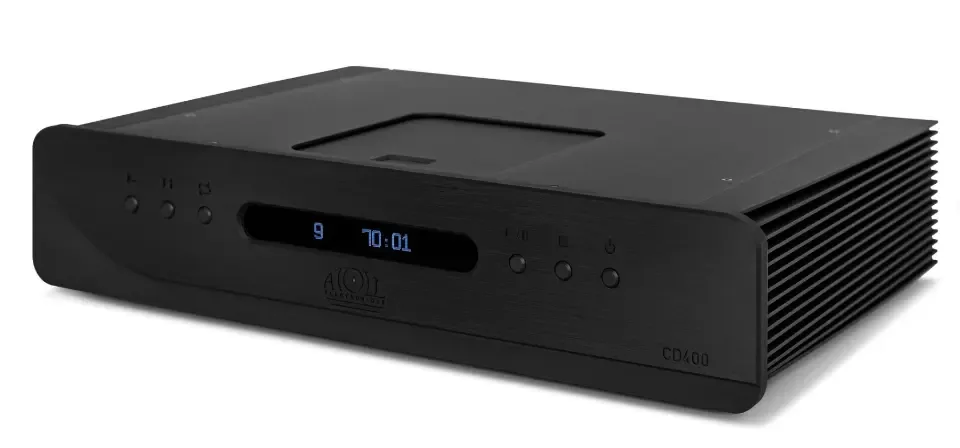

Atoll CD400 EVO Zwart

The CD400 EVO player is equipped with the latest Top Loading mechanics developed by ATOLL. It has perfectly matched high-performance power supplies and audio stages, offering an immersive stereo image and striking sound realism. Thanks to its digital inputs using the internal conversion stages, this player is also a high-end converter. 10 mm brushed, micro-blasted and anodized aluminium front panel, high-precision engraving. 2 mm steel chassis. Solid aluminium sides. New top-loading mechanics developed by ATOLL, suspension mounting, solid aluminum platter. Two 10 VA toroidal transformers each for the audio stages. 30 VA linear transformer (general power supply). 1.6 VA linear transformer (control logic). Ten regulated and independent power supplies. High-quality MKP link capacitors. Anti-vibration system. Complete dual mono structure: – Two independent symmetrical stages for each channel. – One PCM1792A converter per channel. Bipolar transistor audio stages have a perfectly symmetrical structure, are polarized in class A, and are without feedback. Transistor and LED current sources ensure perfect stability and drastic rejection of distortions. Converter inputs: coaxial, optical and USB. High-contrast OLED display (on or off mode after 5 seconds of inactivity). CD text display. ATOLL global remote control supplied as standard. CONNECTIVITY Inputs 1 Optical input. 1 Coaxial input. 1 USB input. Outputs 1 Stereo XLR output. 1 Stereo RCA output. 1 AES/EBU output. 1 Digital optical output. 1 Digital coaxial output. TECHNICAL DATA Power supply: 30 VA + 2×10 VA (audio) + 1.6 VA Total capacitive: 48 000 µF Rising time: 1.3 µs Output impedance: 5.6 Ω Output level: 2.1 Vrms Two converters: PCM1792A Dynamic: 132 dB Signal-to-noise ratio: 132 dB Distortion rate at 1 kHz: 0.002% Standby power consumption: < 0.5 W Operating power consumption: 18 to 24 W Dimensions: 440×340×100 mm Weight: 12 Kg The remote control comes standard with every CD player. It also lets you control ATOLL products: Integrated amplifiers, Preamps, Tuners, and DACs. This remote control has all the advanced functions, including programming, shuffle, repeat, and more.
