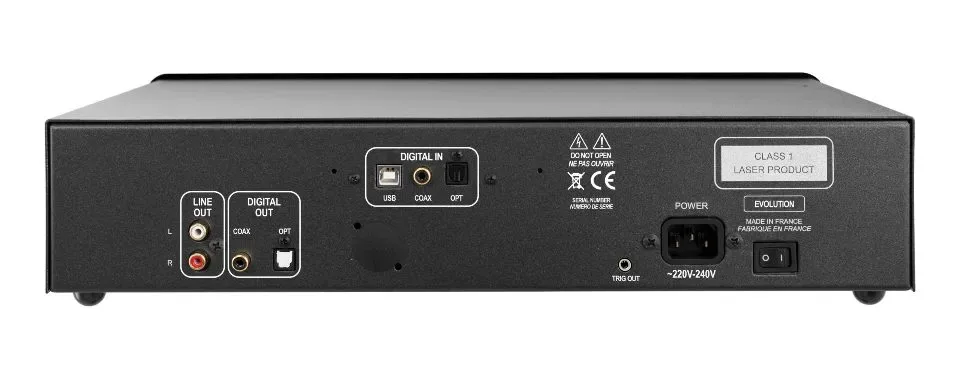

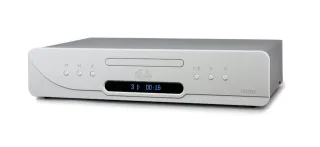

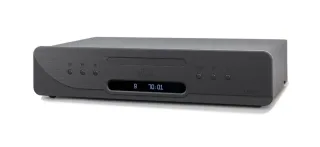

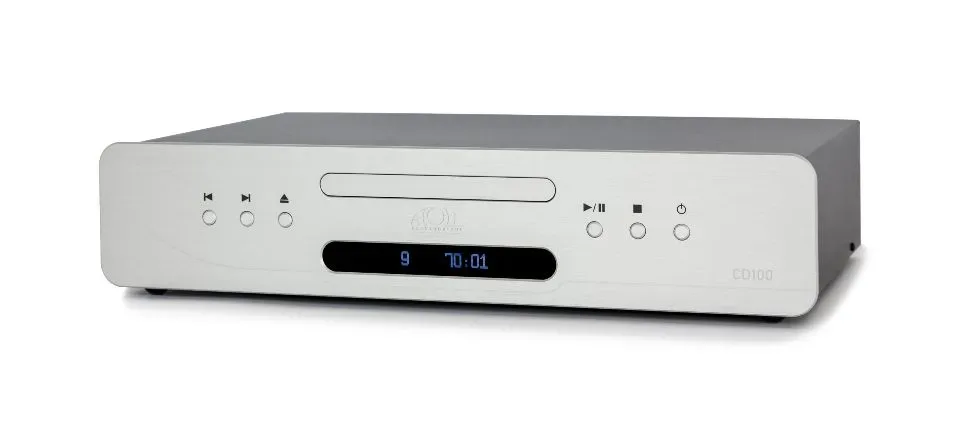

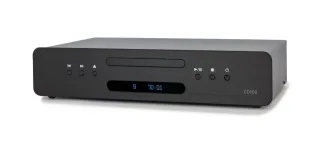

Atoll CD100 EVO

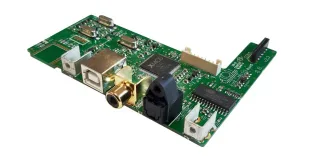

The Evolution series CD players benefit from numerous innovations in terms of power supplies or audio and conversion stages. In addition, all these devices can now receive a 24 bits/192 kHz DAC card based on the player’s internal converter. The USB input is asynchronous. 4 mm brushed aluminium front panel. 10 regulated power supplies, including a specific low-noise one for the converter. Linear power supply for digital stages with a specific 30 VA transformer. Separate 10 VA linear transformers for audio stages. 1,6 VA transformer (low consumption). Original TEAC central CD mechanism (latest generation). Pure audio CD player compatible with: CD, CD-R, CD-RW, MP3, WMA-AAC. Double-sided circuit boards with nickel/gold finish. BURR-BROWN PCM1796 converter: – 24-bit/192 kHz. – Dynamic range: 124 dB. – Signal-to-noise ratio: 124 dB. Low-power OLED display. CD-Text display. Differential audio output stages with discrete components biased in class A. ATOLL global remote control. Optional 24 bits/192 kHz digital card for all Evolution series CD players. TECHNICAL DATA: Supply: 30 + 10 + 1.6 VA Total of capacitors: 21,450 µF Converter (D/A): PCM1796 Dynamic: 123 dB Signal/Noise Ratio: 123 dB Distortion at 1 kHz: 0.0005% Output level: 2.10 Vrms Output impedance: 5.6 Ω Bandwidth: 5 Hz – 20 kHz Rise time: 2.0 µs Standby consumption: < 0.5 W Operating consumption: 10 to 19 W Dimensions (mm): 440×280×95 Weight: 6 Kg
