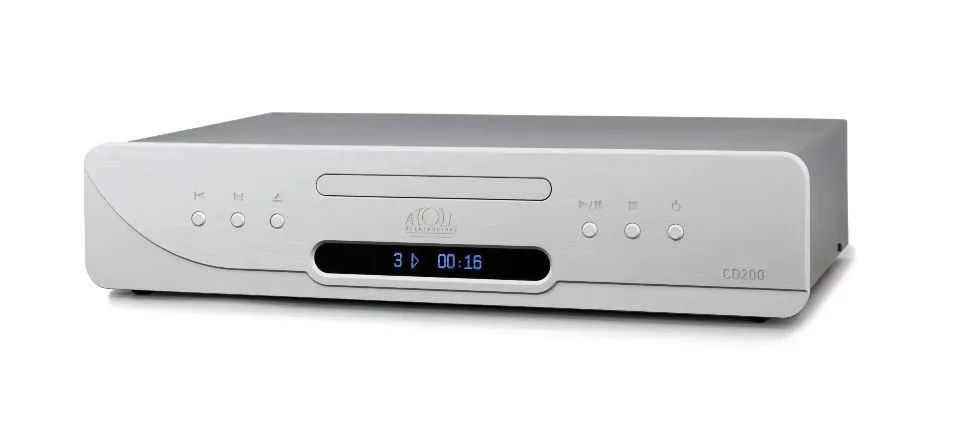

Atoll CD200 EVO

The Evolution Series CD players benefit from many innovations in power supplies or audio and conversion stages. In addition, these devices can now accommodate a 24 bits/192 kHz DAC board relying on the player’s internal converter. The USB input is asynchronous. 8 mm brushed aluminum front panel. 10 regulated power supplies including a specific low-noise one for the converter. Linear power supply for digital stages with specific 30 VA transformer. Separate 10 VA transformer for audio stages. 1.6 VA transformer (low consumption). Original TEAC central CD mechanics (latest generation). Pure audio CD player compatible with: CD, CD-R, CD-RW, MP3, WMA-AAC. Double-sided circuit board with nickel/gold finish. BURR-BROWN PCM1792A converter: – 24-bit/192 kHz. – Dynamic range: 129 dB. – Signal-to-noise ratio: 129 dB. Low-power OLED display. CD-Text display. Differential audio output stages with discrete components biased in class A. ATOLL global remote control. Optional 24-bit/192 kHz digital card for all Evolution series CD players. TECHNICAL DATA: Supply: 30 + 10 + 1,6 VA Total of capacitors: 21 450 µF Converter (D/A): PCM1792A Dynamic: 129 dB Signal/Noise Ratio: 129 dB Distortion at 1 kHz: 0.0004% Output level: 2,65 Vrms Output impedance: 5,6 Ω Bandwidth: 5 Hz – 20 kHz Rise time: 2,0 µs Standby consumption: < 0.5 W Operating consumption: 10 to 19 W Dimensions (mm): 440×284×95 Weight: 7 Kg
