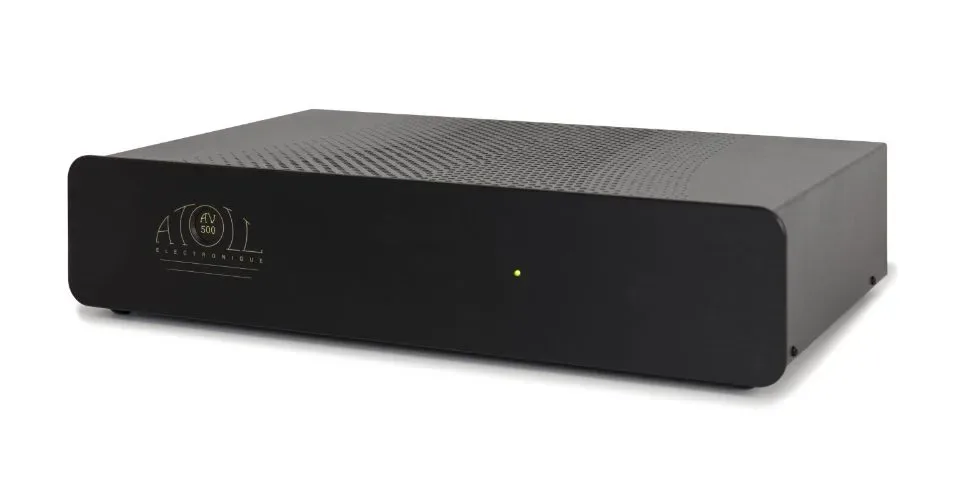

Atoll AV500 Zwart

The AV500 home cinema power amp is a 5-channel model developing up to 85 watts per channel into 8 ohms. Equipped with high-quality electronic components, this amplifier will be advantageously associated with an integrated home cinema amplifier with pre-out outputs to amplify the front and surround channels. This musical amp, combining power and finesse, allows the listener to dive into the heart of the action. 4 mm brushed aluminium front. 1,5 mm steel frame. 2×100 Wrms under 8Ω, 5×85 Wrms under 8Ω. 2 toroidal transformers of 340 VA each. Total Capacitive: 73 000 µF. Symmetrical stages with discrete components. MOS-FET technology output transistors. Optional natural aluminium finish. Possibility of integrating a 12V Trigger input as an option. CONNECTIVITY 5 RCA inputs. 5 RCA outputs (bi-amplification). 5 Loudspeaker outputs strong section to screw accepting banana plugs. Same gain as AM and AV series. TECHNICAL DATA Power in Wrms/8Ω (230 V): 5×85 W / 2×100 W Power in Wrms/4Ω (230 V): 5×100 W / 2×140 W Power supply: 2×340VA Total of capacitors: 73,000 µF Number of entries: 2×5 Input impedance: 47 kΩ Sensitivity: 1,58 V to 1,77 V Signal/Noise ratio: 100 dB Distortion at 1 kHz: 0,005% Bandwidth: 5 Hz – 200 kHz Rising time: 1,3 µs Dimensions: 440×291×95 mm Weight: 12 Kg
