Atoll AV100 Zwart

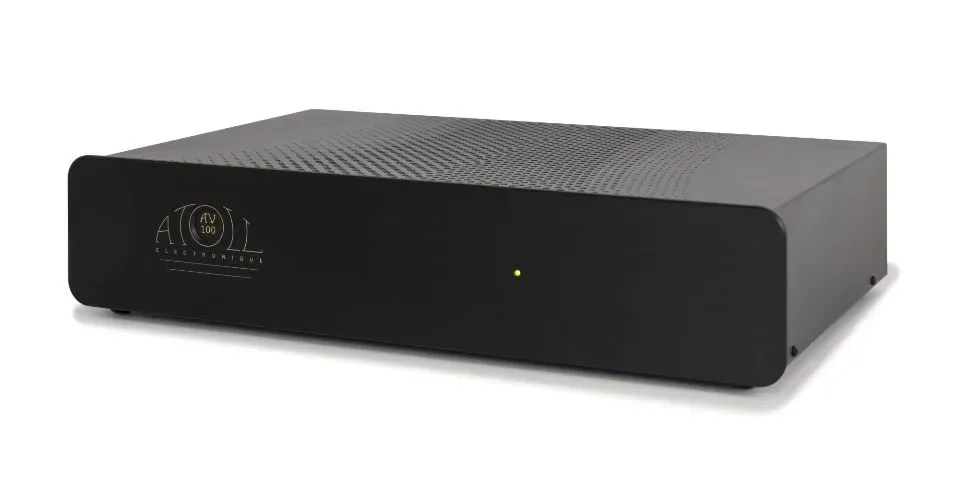

The AV100 home cinema power amp is a 3-channel model developing up to 100 watts per channel into 8 ohms. Equipped with high-quality electronic components, this amplifier will be advantageously associated with an integrated home cinema amplifier with pre-out outputs to amplify the front channels. This musical amp, combining power and finesse, allows the listener to dive into the heart of the action. 4 mm brushed aluminium front. 1,5 mm steel frame. 3×100 Wrms under 8Ω. 2 toroidal transformers of 340 VA each. Total of capacitors: 44 210 µF. Symmetrical stages with discrete components. MOS-FET technology output transistors. Optional natural aluminium finish. Possibility of integrating a 12V Trigger input as an option. CONNECTIVITY Inputs 3 Signal inputs (right, centre and left channels). 1 Trigger input (1) (optional). Outputs 3 Signal outputs (right, centre and left channels). 1 Right speaker output. 1 Central channel output. 1 Left speaker output. TECHNICAL DATA Power in Wrms/8Ω: 100W /channel Power in Wrms/4Ω: 140W /channel Pulse power: 180 W / channel Power supply: 2×340 VA Total of capacitors: 44 210 µF Number of entries: 3 Input Impedance: 47 kΩ Sensitivity: 1,77 V Signal/Noise Ratio: 100 dB Distortion rate at 1 kHz: 0,05% / (10 W) Bandwidth: 5Hz – 200 kHz Rising time: 1,3 µs Dimensions: 440×291×95 mm Weight: 11 Kg
