Monitor Audio Core C380-IDC

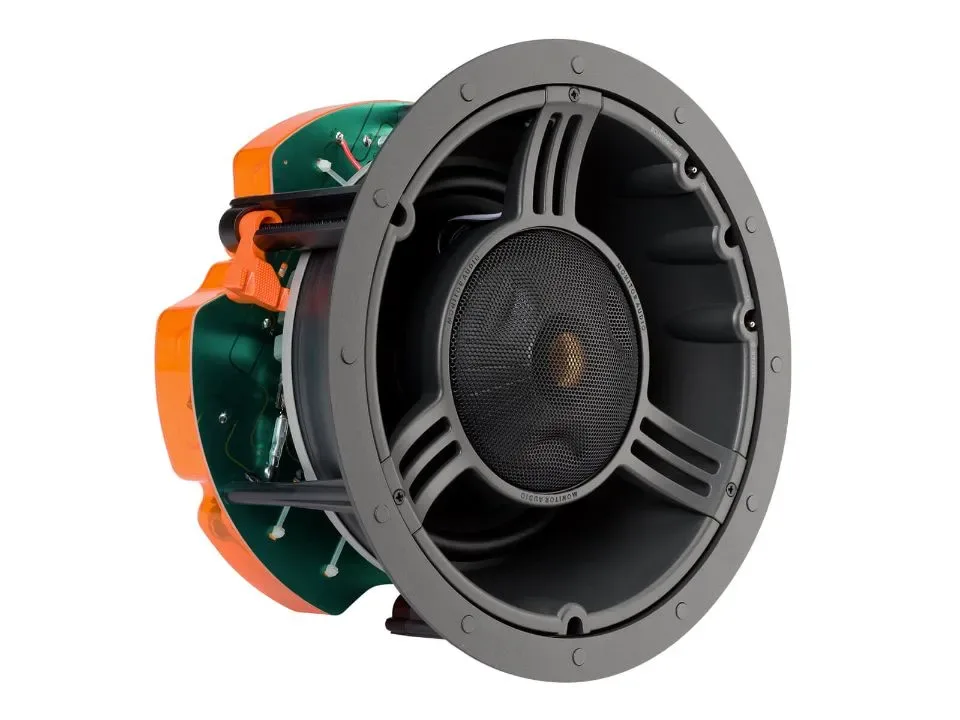

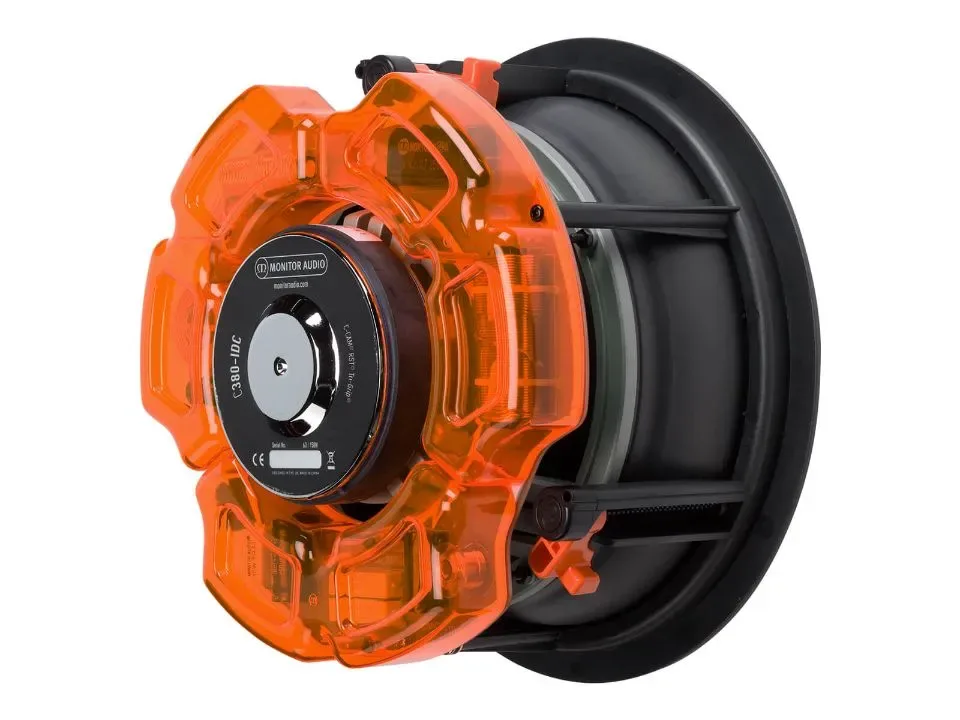

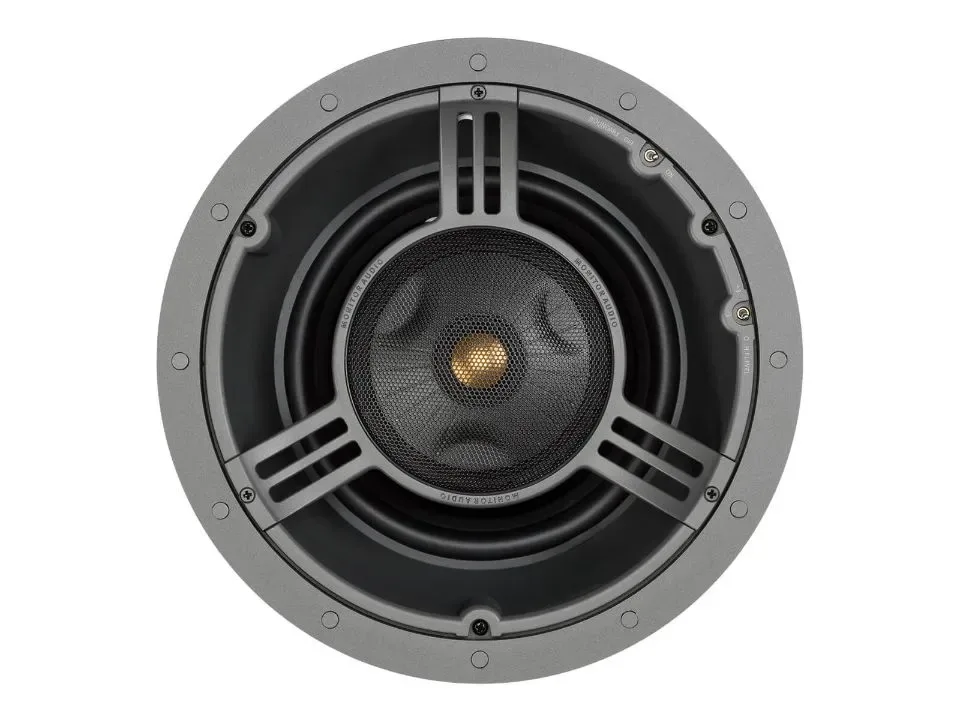

Configured with an 8-inch C-CAM RST bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter. 3-way design provides deeper bass, higher system output and greater power handling. Optional square grille can be used with this model. Frequency Response 45 Hz – 30 kHz Nominal Impedance 6 ohms Sensitivity (1W@1M) 90 dB Maximum SPL 112 dBA Power Handling (RMS) 150 W Recommended Amplifier Requirements 40 – 150 W Drive Unit Complement 8” C-CAM cone bass driver featuring RST pivoting IDC module housing: 4” C-CAM RST inverted mid range driver 1” C-CAM Gold Dome tweeter Adjustment Controls HF Level Switch (+3 dB / 0 dB / -3 dB) Boundary Compensation Switch Overall Diameter (Including Grille) 285 mm (111/4") Overall Depth (Including Grille) 161 mm (65/16") Mounting Depth 157 mm (63/16") Cut-Out Hole Diameter 247 mm (93/4") Optional Square Grille - Outer Dimensions 285 x 285 mm (111/4") Fixing Type 3 position Tri-Grip dog fixings Construction Material Mineral filled ABS, RoHS compliant Weight 3.64 kg (8 lb) Pre-Construction Bracket CB8 Pre-Construction Bracket (Green) Back Box CMBOX-R
