Monitor Audio Core W380-IDC

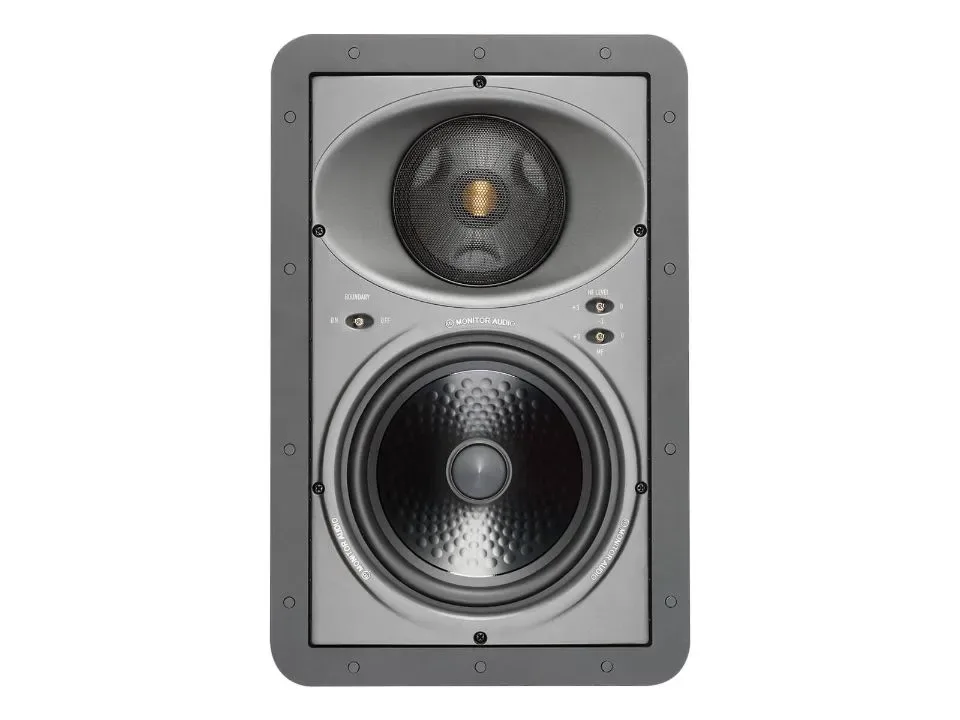

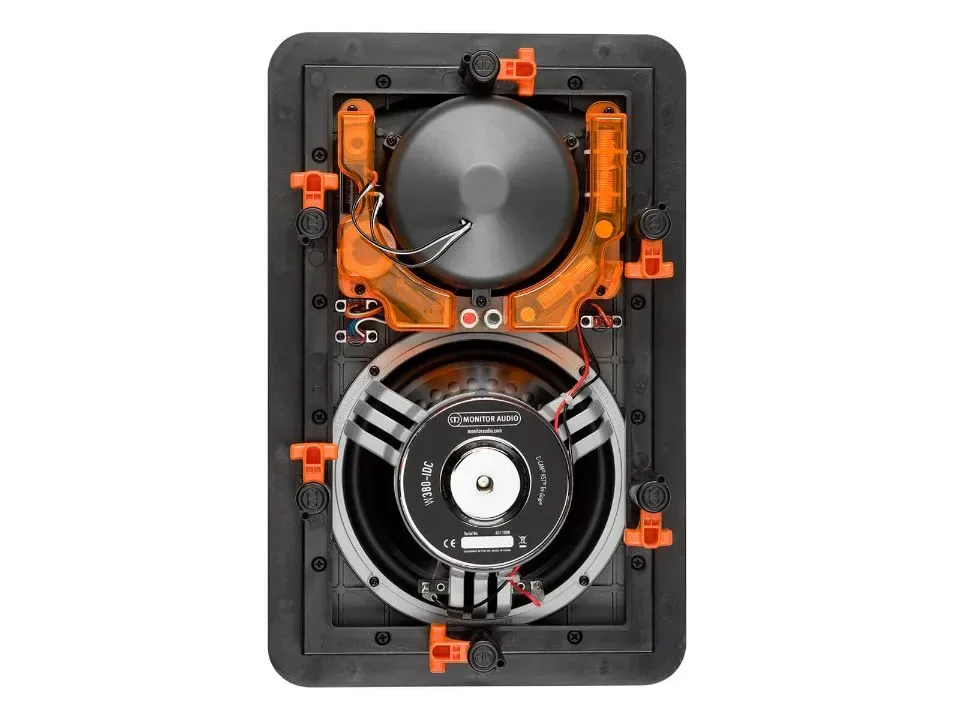

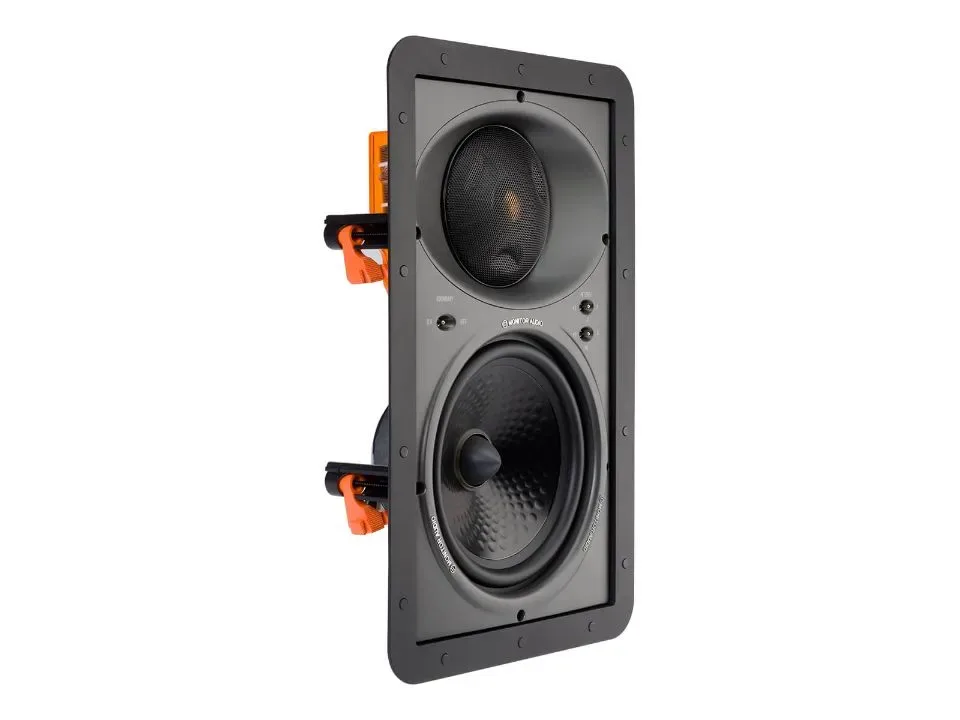

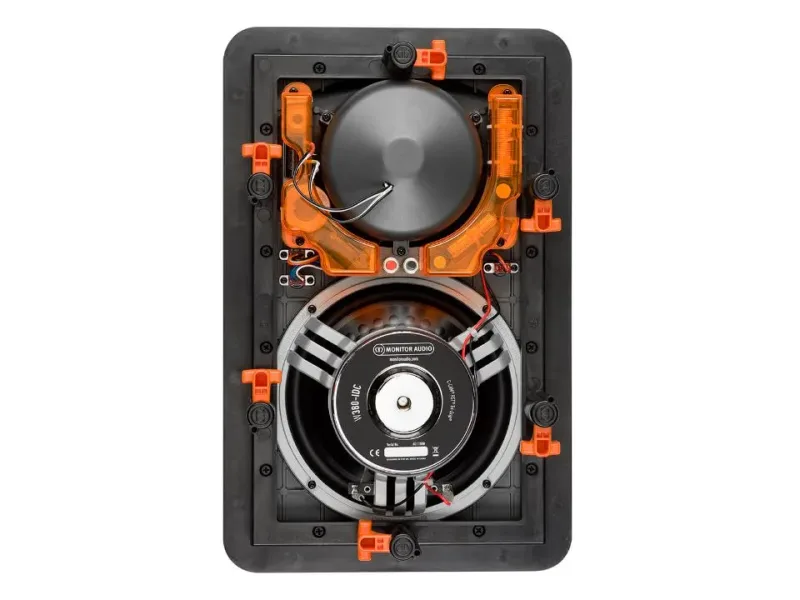

Configured with an 8-inch C-CAM RST bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter. True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation. Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls. Frequency Response 45 Hz – 30 kHz Nominal Impedance 6 ohms Sensitivity (1W@1M) 90 dB Maximum SPL 111.6 dBA Power Handling (RMS) 150 W Recommended Amplifier Requirements 40 – 150 W Drive Unit Complement 8" C-CAM cone bass driver featuring RST, pivoting IDC module housing: 4" C-CAM RST inverted mid range driver 1" C-CAM Gold Dome tweeter Adjustment Controls HF Level Switch (+3 dB / 0 dB / -3 dB) MF Level Switch (+3 dB / 0 dB / -3 dB) Boundary Compensation Switch Overall Diameter (Including Grille) 441 x 288 mm (173/8 x 115/16") Overall Depth (Including Grille) 104 mm (41/8") Mounting Depth 100 mm (315/16") Cut-Out Hole Diameter 387 x 234 mm (151/4 x 93/16") Fixing Type 6 position Tri-Grip dog fixings Construction Material Mineral filled ABS, RoHS compliant Weight 4.1 kg (9 lb) Pre-Construction Bracket WB8 Pre-Construction Bracket (Green) Back Box WCBOX-L Sold As Single Unit
