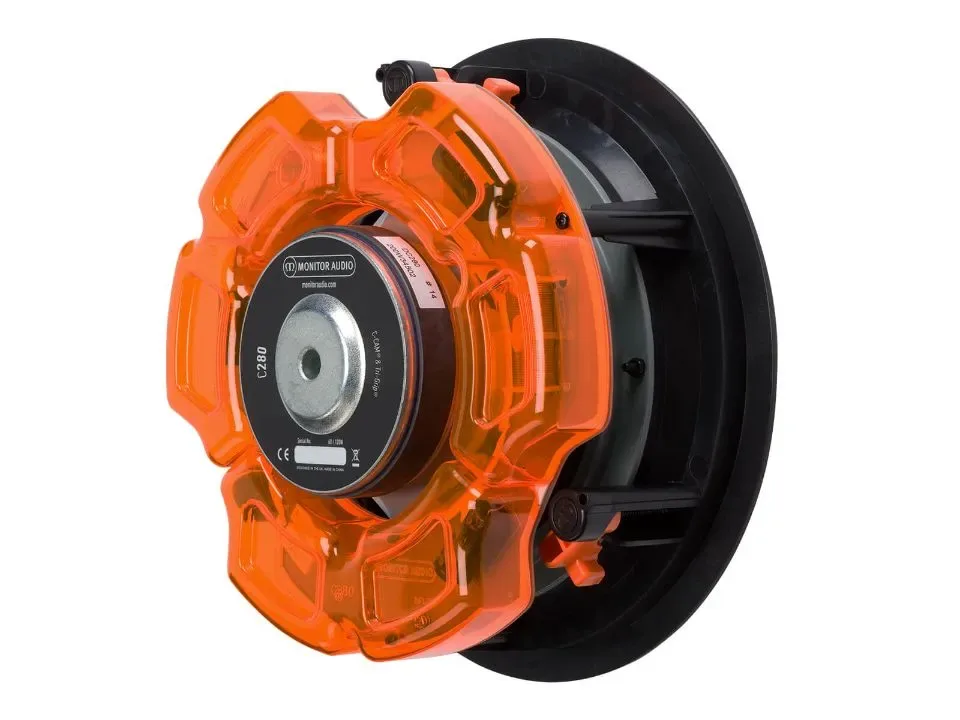

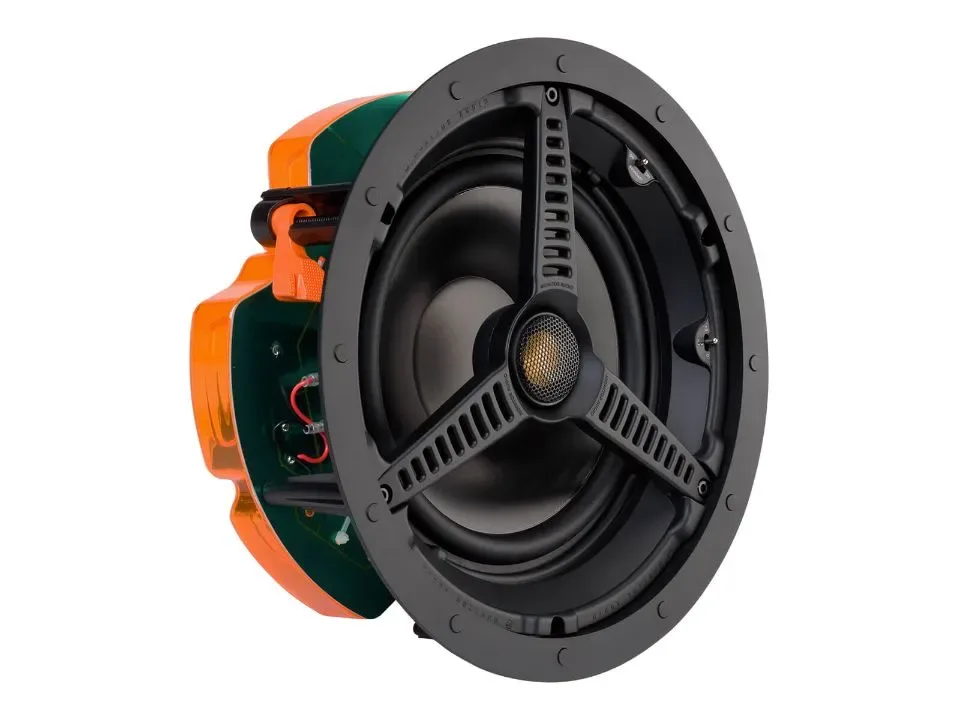

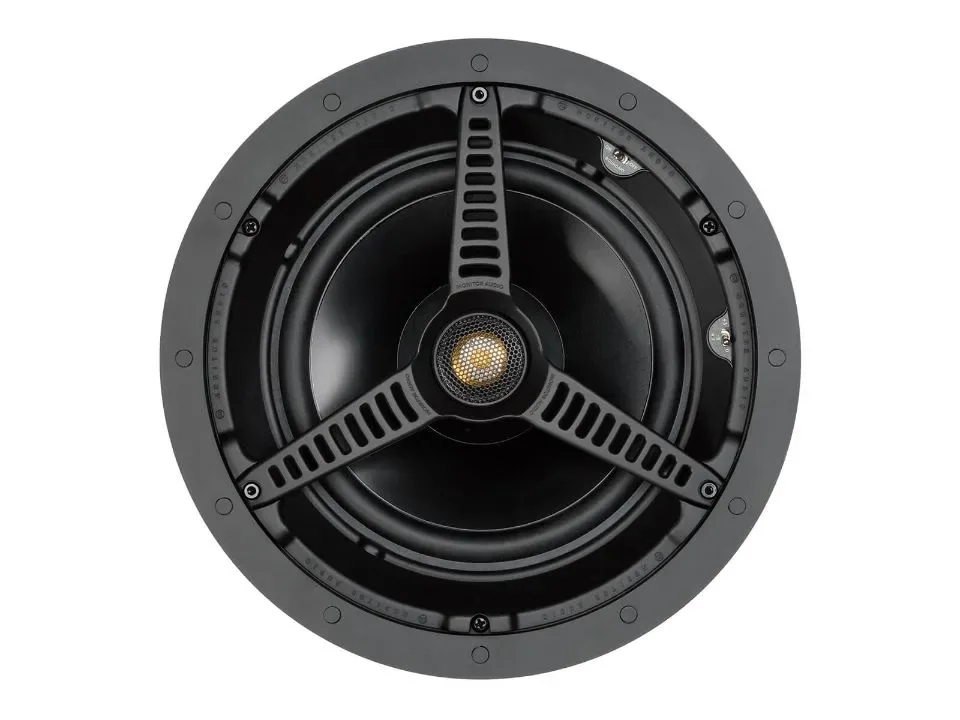

Monitor Audio Core C280

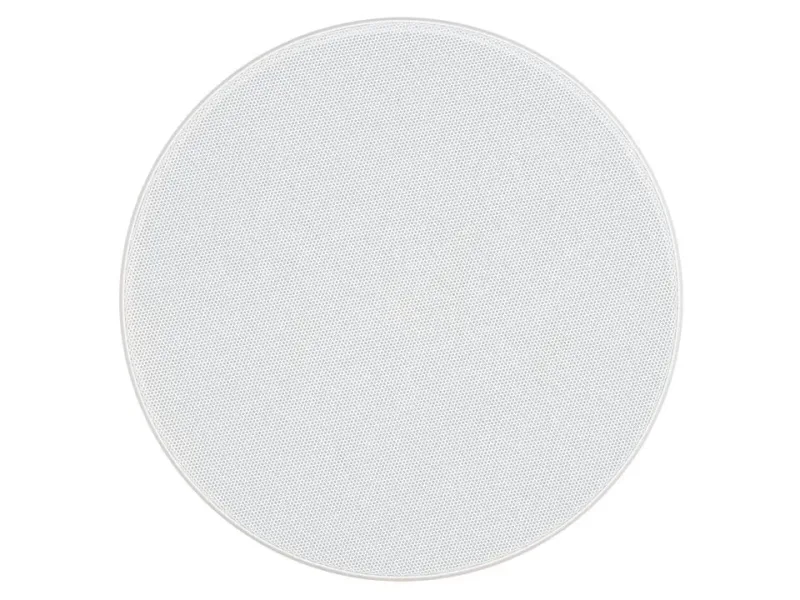

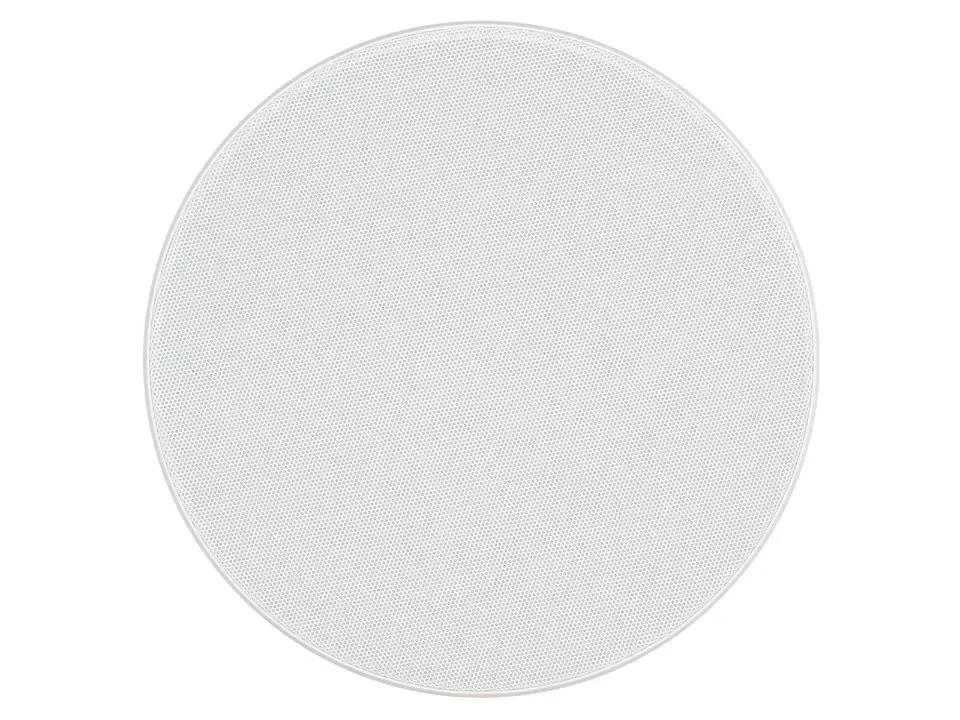

An 8-inch C-CAM bass driver and a more highly specified version of the C-CAM Gold Dome tweeter offer an extended high-frequency response to 30 kHz, as well as higher output and power handling capacity than the 2-way models. Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3 dB / 0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls. Optional square grille can be used with this model. Frequency Response 50 Hz – 30 kHz Nominal Impedance 6 ohms Sensitivity (1W@1M) 90 dB Maximum SPL 111.6 dBA Power Handling (RMS) 120 W Recommended Amplifier Requirements 30 – 120 W Drive Unit Complement 8" C-CAM cone bass driver 1" C-CAM pivoting Gold Dome tweeter Adjustment Controls HF Level Switch (+3 dB / 0 dB / -3 dB) Boundary Compensation Switch Overall Diameter (Including Grille) 285 mm (111/4") Overall Depth (Including Grille) 126 mm (415/16") Mounting Depth 122 mm (413/16") Cut-Out Hole Diameter 247 mm (93/4") Optional Square Grille - Outer Dimensions 285 x 285 mm (111/4") Fixing Type 3 position Tri-Grip dog fixings Construction Material Mineral filled ABS, RoHS compliant Weight 2.8 kg (6 lb 2 oz) Pre-Construction Bracket CB8 Pre-Construction Bracket (Green) Back Box CCBOX-R / CMBOX-R
