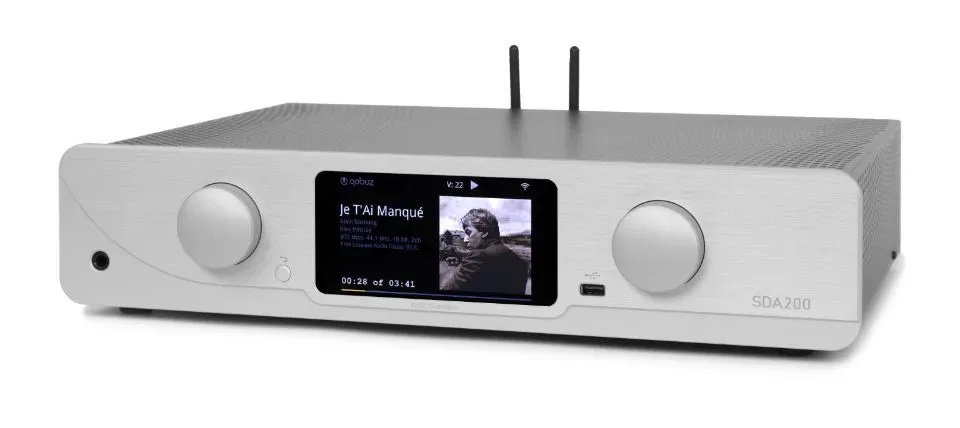

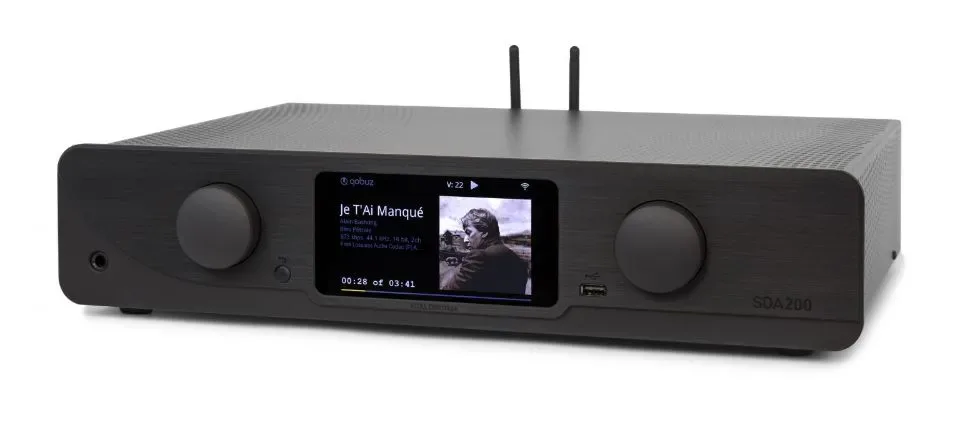

Atoll SDA200 SIGNATURE

STREAMER / DAC / INTEGRATED AMPLIFIER. Whether it’s listening to music in high-definition streaming, locally from your network, from a USB key, from a hard drive, via Bluetooth®, or your favourite internet radios, our “All-in-one-un” SDA200 Signature is fully adapted to current needs related to the playback of dematerialised music files. In addition, it has very complete connectivity. Finally, the SDA200 Signature integrates a high-performance converter and the amplifier part of the IN200 Signature. 8 mm brushed aluminium front. 2 toroidal transformers of 340 VA each. Total of capacitors: 65 800 µF. 2×120Wrms / 8Ω. MOS-FET dual push-pull power stage. High-quality, shielded MKP technology link capacitors. Filtering capacitors: 8×6800 μF high quality, low ESR specific for ATOLL. BURR-BROWN PCM1792 converter: – Dynamic: 129 dB. – Signal/Noise ratio: 129 dB. 5″ TFT LED colour graphic display (800*480). Discrete component preamp stages without negative feedback in pure Class A. Analog volume management (switched resistors) that can be bypassed. A specific power supply is dedicated to the audio stages. A particular power supply is dedicated to the analogue digital audio converter. Accepted resolutions: PCM up to 24 bits/192 kHz and DSD64 and DSD128. Playback of audio files present on the network (DLNA and UPnP compatible) in a wired RJ45 or WiFi connection. Display of names, tags, resolutions and album covers. “Gapless” system (no cut between pieces). Ability to create playlists. USB-A file systems: FAT32, NTFS, EXT2/3/4. ATOLL “streamer” remote control supplied as standard. “ATOLL Signature 2” App (Android and IOS). CONNECTIVITY Inputs 2 Analog inputs – 2 coaxial S/PDIF (PCM1792 24 bits/192 kHz). 2 Toslink optical S/PDIF inputs (24 bits/192 kHz PCM). 2 USB-A inputs (1 front and 1 rear). 1 RJ45 network socket. 1 Bluetooth® receiver (antenna). Outputs Speakers. 1 Pre-out output. 1 Coaxial S/PDIF output. 1 Toslink optical S/PDIF output. 1 Trigger output 12V. 1 Headphone output on the front panel (Ø 6,35 mm – 1/4″). 1 Wi-Fi antenna (802.11b/g/n). TECHNICAL DATA Power supply: 689 VA Wrms/channel/8Ω: 2×120 W Wrms/channel/4Ω: 2×200 W Total of capacitors: 65,800 μF Dynamic: 129 dB Input impedance: 220 kΩ Maximum input level: 3,5 Vrms Distortion at 1 kHz: 0,05% / 10 W Bandwidth: 5 Hz – 100 kHz Rising time: 2.0 μs Sensitivity: 350mV Signal/Noise Ratio: 129 dB D/A converter: BURR-BROWN PCM1792 24-bit/192 kHz Dimensions: 440×365×95 mm Weight: 13 kg
