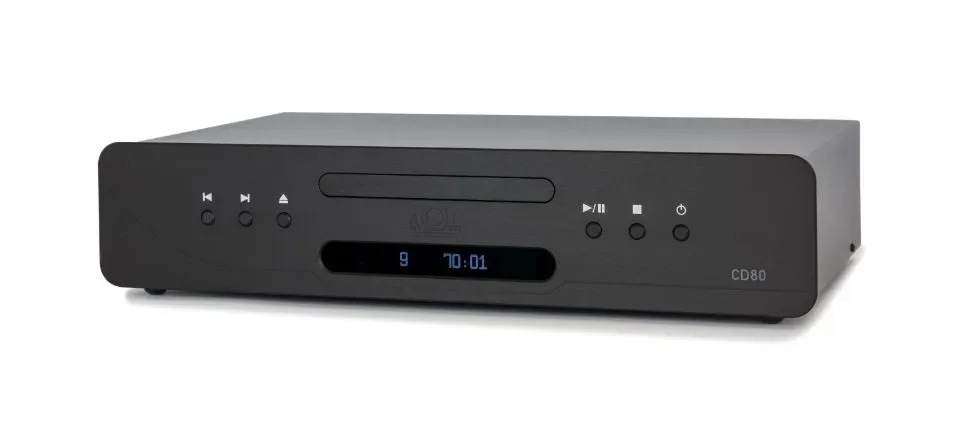

Atoll CD80 EVO Zwart CD Speler

The Evolution series CD players benefit from numerous innovations in terms of power supplies or audio and conversion stages. In addition, all these devices can now receive a 24 bits/192 kHz DAC board based on the player’s internal converter. The USB input is asynchronous. 4 mm brushed aluminium front panel. 10 regulated power supplies, including a specific low-noise one for the converter. Linear power supply for digital stages with a specific 30 VA transformer. Separate 4,6 VA linear transformer for audio stages. 1,6 VA transformer (low consumption). Original TEAC central CD mechanics (latest generation). Pure audio CD player compatible with: CD, CD-R, CD-RW, MP3, WMA-AAC. Double-sided circuit boards with nickel/gold finish. BURR-BROWN PCM1791A converter: – 24-bit/192 kHz. – Dynamic range: 113 dB. – Signal-to-noise ratio: 113 dB. Low-power OLED display. CD-Text display. Differential audio output stages with discrete components biased in class A. ATOLL global remote control. Optional 24 bits/192 kHz digital card for all Evolution series CD players. TECHNICAL DATA: Supply: 30 + 4.6 + 1.6 VA Total of capacitors: 21,400 µF Converter (D/A): PCM1791A Dynamic: 113 dB Signal/Noise Ratio: 113 dB Distortion at 1 kHz: 0.001% Output level: 2.5 Vrms Output impedance: 5.6 Ω Bandwidth: 5 Hz – 20 kHz Rise time: 2.0 µs Standby consumption: < 0.5 W Operating consumption: 9 to 16 W Dimensions (mm): 440×280×95 Weight: 6 Kg
