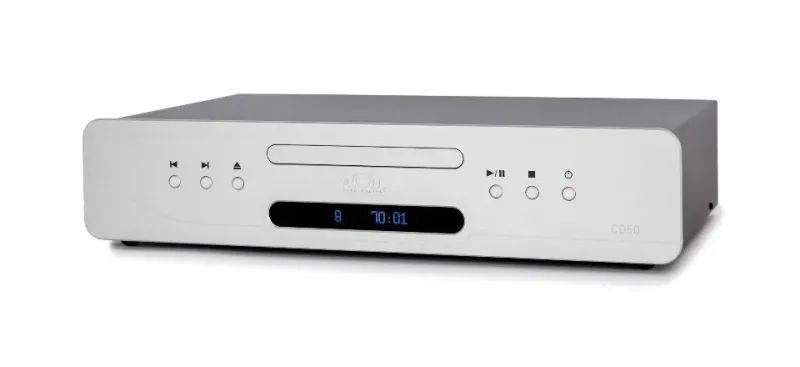

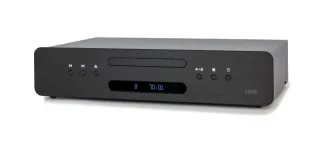

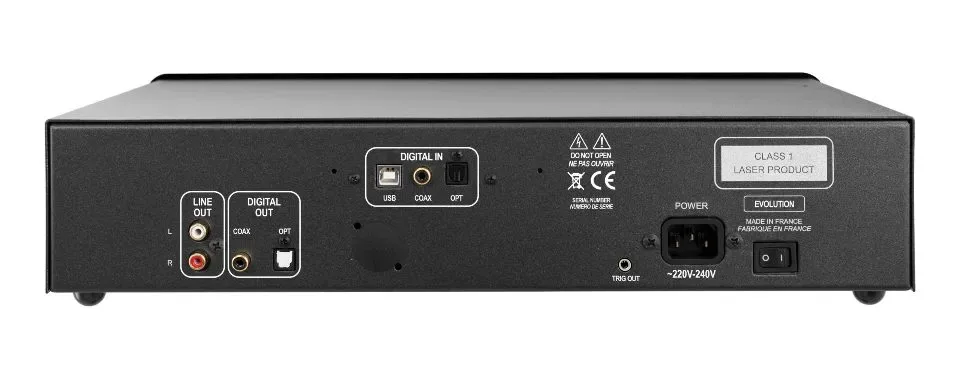

Atoll CD50 EVO

The Evolution series CD players benefit from numerous innovations, whether in terms of power supplies or audio and conversion stages. In addition, all these devices can receive a 24 bits/192 kHz DAC card based on the player’s internal converter. The USB input is asynchronous. 4 mm brushed aluminum front panel. 8 regulated power supplies. Linear power supply for digital stages with specific 30 VA transformer. Separate 4,6 VA linear transformer for audio stages. 1,6 VA transformer (low consumption). Original TEAC central CD mechanics (latest generation). Pure audio CD player compatible with: CD, CD-R, CD-RW, MP3, WMA-AAC. Double-sided circuit board with nickel/gold finish. BURR-BROWN PCM1791A converter: – 24-bit/192 kHz. – Dynamic range: 113 dB. – Signal-to-noise ratio: 113 dB. Low-power OLED display. CD-Text display. Differential audio output stages with discrete components biased in class A. ATOLL global remote control. Optional 24-bit/192 kHz digital card for all Evolution series CD players. TECHNICAL DATA: Power: 30 + 4,6 + 1,6 VA Total of capacitors: 16,700 µF Converter (D/A): PCM1791A Dynamic: 113 dB Signal/Noise Ratio: 113 dB Distortion at 1 kHz: 0.001% Output level: 2,5 Vrms Output impedance: 5,6 Ω Bandwidth: 5 Hz – 20 kHz Rise time: 2.0 µs Standby consumption: < 0.5 W Operating consumption: 9 to 16 W Dimensions (mm): 440×280×95 Weight: 6 Kg
