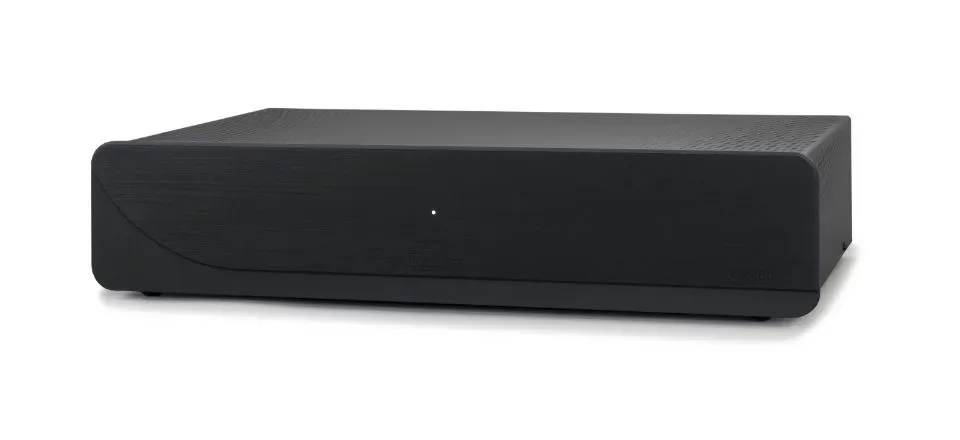

Atoll AM200 EVO Zwart Versterker

The AM200 Evolution block is suitable for most HIFI or audio-video applications. Very scalable, it can be used alone or in bi-amplification. It can be associated with an integrated amplifier or an ATOLL preamplifier. It is bridgeable in a monoblock via an internal switch. It is equipped as standard with a 12V Trigger input (direct ignition in conjunction with a preamp). 8 mm brushed, micro-blasted and anodized aluminum front panel, high-precision engraving. 1.5 mm steel chassis. Two 340 VA toroidal transformers each. High-quality and shielded MKP link capacitors. Bipolar transistor and LED current sources to ensure perfect voltage stability. Discrete balanced audio stages. MOS-FET power transistor. Class A/B output stage biasing. Custom PCB with nickel/gold finish. Mono block bridgeable. New tellurium copper speaker outputs. 12V Trigger input. TECHNICAL DATA Power Wrms/channel/8Ω: 120 W Power Wrms/channel/4Ω: 200 W Pulse power/channel: 300 W Power supply: 2×340 VA Total capacitive: 59,420 µF Number of inputs: 1 RCA Consumption with switch off: 0 W Consumption in operation: 20 W – 600 W Input impedance: 220 kΩ Sensitivity: 1.77 V Signal/noise ratio: 100 dB Distortion at 1 kHz: 0.05% Bandwidth: 5 Hz – 200 kHz Rise time: 1.5 µs Dimensions: 440×295×95 mm Weight: 12 kg
