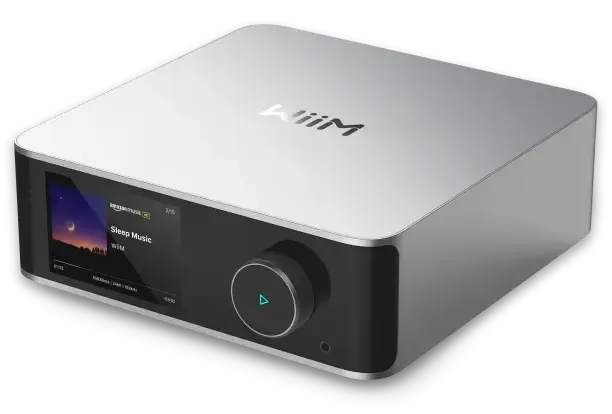

Wiim Ultra silver

Digital Hub for Your Music, TV and Turntable. Touch Display Glass-covered 3.5" vibrant touchscreen display: Displays App widgets, large album pictures, playback control, playing queue, presets, EQ, audio input and output, and device settings Guides users through the OOBE and OTA Provides feedback when there's a change in the play mode Control Interfaces LCD Touchscreen: 3.5-inch display for playback control and settings Volume Knob: Adjusts volume and functions as a play/pause button LED Indicator: 4-color RGBW LED indicates device status LED4 Color RGBW LED indicates the device status Input Options Analog Inputs: Line-In (RCA): Connects to external audio sources like CD players or PCs Phono Input: Dedicated input for turntables without a built-in preamp Digital Inputs: Optical (TOSLINK): Supports 2-channel PCM stereo up to 24-bit/192kHz HDMI ARC: Receives audio from TVs; supports PCM and Dolby Digital 5.1 formats Wireless Connectivity: • Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote​​ • Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming​​ USB Port: For connecting USB storage devices (formatted in FAT32, NTFS, or EXT4)​ Output Options Analog Inputs: Line-Out (RCA):Maximum output of 2.1V RMS Headphone Out:3.5mm jack for connecting headphones Digital Outputs: Optical (TOSLINK): Supports up to 24-bit/192kHz Coaxial (S/PDIF): Supports up to 24-bit/192kHz USB Audio Out: Supports up to 24-bit/192kHz; UAC 2.0 compliant Subwoofer Output: Dedicated output for powered subwoofers​ 12V Trigger Out: Allows automatic power control of connected devices​​ Audio Performance Line out： DAC: ESS ES9038Q2M SABRE DAC Analog Output SNR: 121 dB (A-weighted) THD+N (Analog Out): -115 dB (0.00018%) Supported Audio Formats: AAC, ALAC, FLAC, MP3, WAV, WMA, and more Maximum Sampling Rate: Up to 192kHz/24-bit Headphone out： 300 ohms: SNR (119 dB), THD+N (-99 dB) 32 ohms: SNR (119 dB), THD+N (-92 dB) EQ24 preset EQ settings, 10-band Graphics EQ, 10-band parametric EQ External StorageAccess personal media library and use it as a media server for other WiiM and DLNA devices, Support FAT32, NTFS, and EXT4 file systems. Supported Streaming ProtocolSpotify Connect, TIDAL Connect, Google Cast Audio (CastLite), Alexa built-in, DLNA, Squeezelite, Roon Ready
